Hanwha SM481 Plus Pick and Place Machine

Hanwha SM481 Plus Pick and Place Machine,
Speed: 31,000CPH (Optimum)

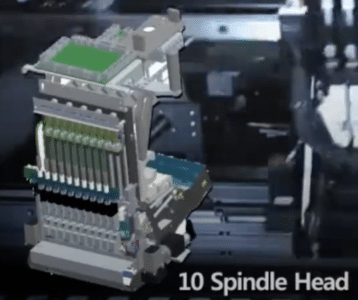

Structure : 1 Gantry x 10 Spindles/Head
Component range:0402(01005)
PCB Size: L460xW400

Hanwha SM481 Plus

Hanwha SM481 Plus is a high-performance PCB pick and place machine designed for versatile and precise Surface Mount Technology (SMT) assembly. It is optimized for applications requiring a balance of speed, accuracy, and flexibility, making it suitable for a wide range of industries, including consumer electronics, automotive, and industrial manufacturing.

Key Features of the Hanwha SM 481 Plus:

1. High-Speed Placement:

Offers a maximum placement speed of up to 41,000 components per hour (CPH) under optimized conditions.
Balances speed and precision, making it ideal for mid-to-high-volume production.

2. Single Gantry with Flexible Nozzles:

Equipped with a single gantry system featuring ten nozzles, ensuring simultaneous placement of multiple components.
Reduces cycle time and boosts productivity.

3. Broad Component Handling Range:

Handles components as small as 0201 metric (0.25mm x 0.125mm) and as large as 42mm x 42mm or up to 15mm in height.
Compatible with diverse component shapes, including standard SMT components, odd-shaped parts, and ICs.

4. Precision Vision System:

Advanced vision technology ensures accurate component recognition and placement.
Compatible with an optional 3D inspection to verify placement quality.

5. Flexible Feeder Configuration:

Supports a variety of feeder types, including tape, stick, and tray feeders, for diverse production needs.
Features a modular design for quick and easy setup changes, minimizing downtime.

6. PCB Versatility:

Supports a maximum PCB size of 510mm x 460mm, with options for larger boards.
Suitable for rigid, flexible, and multi-layer PCB types.

7. User-Friendly Software:

Intuitive programming interface for easy setup and operation.
Integrated production management features, including traceability and real-time monitoring.

8. Reliable and Durable:

Built for consistent, 24/7 operation with robust components.
Designed to minimize maintenance needs and ensure long-term reliability.

9. Compact and Efficient Design:

Space-saving design fits seamlessly into SMT production lines.
Lightweight yet sturdy construction ensures ease of integration.

Applications:

The SM481 Plus is ideal for manufacturers requiring a versatile pick-and-place machine capable of handling diverse production requirements, including:

Consumer electronics
Automotive components
Telecommunications equipment
LED displays and modules
Medical devices

Hanwha pick and place machine SM481 Plus is an excellent choice for manufacturers seeking a reliable, high-speed pick-and-place solution that combines flexibility, precision, and ease of operation for modern SMT assembly challenges.

Model	SM471 Plus	SM481 Plus	SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB	Max. 510(L) x 460(W)(Standard)	Max. 460(L) x 400(W)(Standard)	Max. 460(L) x 400(W)(Standard)
Applicable PCB	Max. 610(L) x 460(W)(Option)	Max. 1500(L) x 460(W)(Option	Max. 1200(L) x 510(W)(Option)
Dimension (mm)	1650×1690×1458	1650×1680×1530	1650×1680×1458
