JUKI RX-8 Pick and Place machine

• High-speed placements of up to 100,000 CPH.*¹
• Best-in-class placement rate per square meter(sq ft).*²
• Integrates seamlessly with the production environment
• Trace Monitor tracks quality throughout the production process
• Low-impact placement for flexible circuits
• The P20 high-precision round head is ideal for high-speed chip placement from a single reel.
• State-of-the-art centering and inspection vision system
• New high-accuracy camera for inspection and centering

Feature 1
High-speed placements of up to 100,000 CPH*best-in-class placement rate per square meter (sg ft)*2

Feature 2
Integrates seamlessly with the production environment

Feature 3
Achieves high-quality production

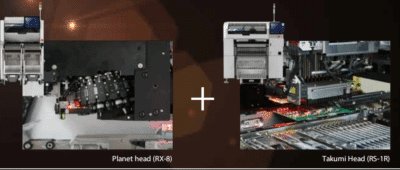

Creates a high-speed, flexible line when combined with the Takumi Head ( juki pick and place machine RS-1R）

Juki pick and place machine rx8 has high-speed placements of up to 100,000 CPH.*1Best-in-class placement rate per square meter (sg ft)*2

The new P20 placement head achieves speeds of up to 100,000CPH. At only 998mm wide, the RX-8 provides exceptional productivity in a compact footprint. Best in class placement per square meter (square foot)

* 1 Optimum conditions *2 Market survey data

Integrates seamlessly with the production environment

Efficient production is made possible via upstream data sharing to support bad mark propagation, and component supply management while showing the real-time status of the production line.

Communicates and shares information with other equipment

Bad mark information of the circuit detected by the inspection machine or a machine upstream of the line can be propagated to the RX-8 in order to reduce the bad mark recognition time and improve productivity.

Component Management with Auto replenishment

Top production efficiency is achieved by continuous monitoring of component consumption and communication with the Automated Component Storage and Transport System. When the placement system detects a low evening, it automatically communicates that information to the storage system, which immediately pulls an additional reel of that component, and loads it on an AlV to transport the reel to the line to arrive before the existing reel has run out. This eliminates downtime during production due to component run out.

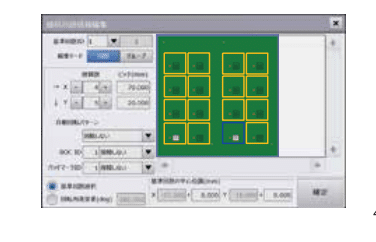

It is very simple to generate PCB programming data

Using visual aids of the board layout makes programming intuitive and simple

Trace Monitor tracks quality throughout the production process

Trace Monitor provides real-time status of the placement head during production. It tracks mis picks, and recognition errors and records which feeders and nozzles those errors came from. A dashboard displays all the key performance indicators making it easy to view the production efficiency and what is needed to improve the process of juki pick and place machine rx8.

Low-impact placement for flexible circuits

The low impact feature allows separate adjusting of the down and up speed of the nozzle during placement. This minimizes the load on the part and on the board during placement. This is optimal for placing very small parts that require a lot of accuracy.

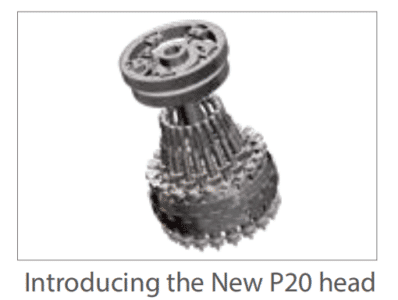

Juki RX- 8 pick and place machine p20 head

The P20 is designed for the placement of ultra-small chips and small ICs.

It is ideal for high-density and high-accuracy placements of LED edge lights.

juki pick and place machine rx8 head-p20

Centering and inspection vision system

The juki pick and place machine rx8 vision system detects presence and absence, inverted chips, and tombstoning. It also automatically corrects the pick position of every part, increasing the pick rate. This system makes it ideal for placing very small parts.

New high-accuracy camera for inspection and centering

New coaxial lighting technology gets clearer images and better, more accurate inspection data
