What is Solder Paste Printing Machine ?

Introduction to Solder Paste Printing Machines

Printed circuit boards are the core of modern electronics. They require precision and intricate processes. Solder paste printer machines are crucial in this process, as they apply solder paste with high accuracy to the PCB. What is this machine and why is it important?

Definition and Purpose

Accuracy is a must in PCB production. The slightest error in the solder paste application process can result in defective boards and costly delays. Solder paste printer machines ensure precise application. They reduce errors, increase productivity and improve product quality. Solder paste printers are becoming more and more important as technology continues to advance.

Importance of PCB Manufacturing Process

Solder paste printer machines are specialized devices that apply solder to a PCB’s surface using a stencil. This step is crucial in preparing the board for component placement. Solder paste acts as a glue, keeping components in place while soldering. Solder paste must be applied precisely to ensure that electrical connections and component placement are successful.

Key Components of a Solder Paste Printer Machine

Understanding the core components of a solder paste printer machine is crucial for appreciating how it works and its impact on the PCB assembly process.

Stencils and their Role

The stencil is made of a metal sheet that has been cut out to match the PCB. The stencil acts as a tool, which allows solder paste only to be used where it is needed. The stencil is made from stainless steel and other durable materials to ensure that it fits tightly with the PCB.

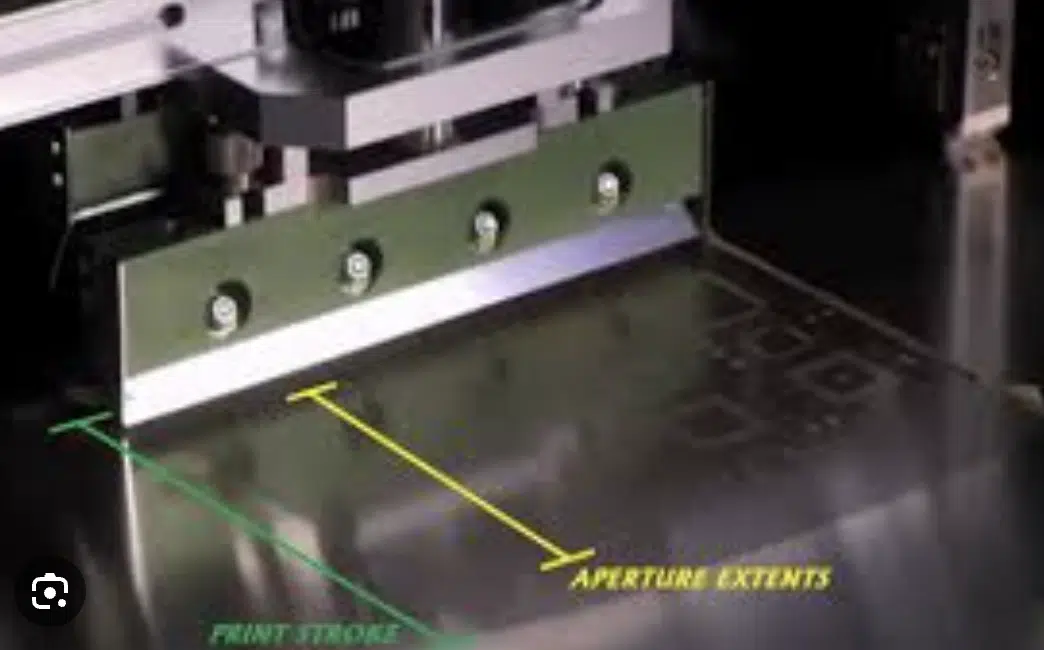

Squeegee System Explained

The squeegee spreads solder paste over the stencil. Imagine it as a tool that is used to push paste into stencil openings. Squeegees can be made from rubber or metal and move in a controlled way to ensure uniform distribution.

Vision and Alignment Systems

Modern solder paste printing machines are equipped to detect the placement of PCBs and stencil alignment. These systems use sensors and cameras to ensure alignment. This eliminates the risk of misprints, and boosts production accuracy.

How Solder Paste Printer Machines Work

The operation of a solder paste printer machine involves several well-coordinated steps.

Prepare the stencil

The stencil must be aligned to the PCB design before printing. The preparation is crucial to ensure accurate paste application in the following steps.

Applying Solder paste

The solder paste can be spread on the surface of the stencil using a squeegee. The paste is applied to the stencil openings that correspond with the pads of the PCB.

Aligning

The machine’s alignment and vision systems align the PCB beneath the stencil. The printer then presses the PCB firmly against the stencil to transfer the solder paste exactly where it is needed.

Types of Solder Paste Printer Machines

Not all solder-paste printer machines are created equal. Depending on the level of automation and production requirements, they can be categorized into three main types. Let’s dive into these types to understand their features and suitability.

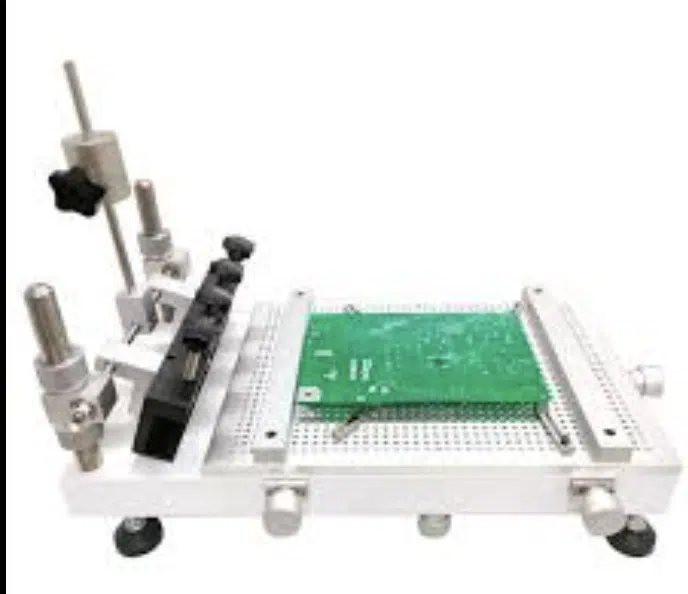

 Manual Solder Paste Printers

Manual solder paste printers are the most basic type of solder paste printing equipment. They require human intervention to position the stencil, apply solder paste, and handle the PCB.

• Key Features :
  • No complex machinery—ideal for small-scale operations.
  • Low cost and easy to maintain.
  • Suitable for prototyping or small-batch production.
• Limitations :
  • Accuracy depends on operator skill.
  • Time-consuming for large-scale production.

Manual printers are best suited for hobbyists or small businesses where high production speed isn’t necessary.

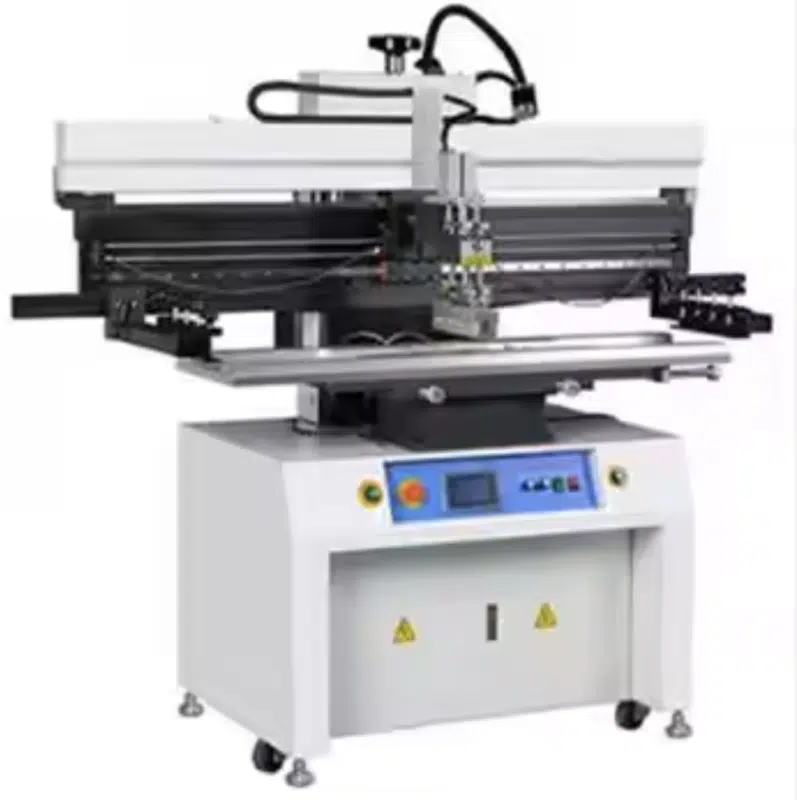

Semi-Automatic Printers

Semi-automatic solder paste printers are a step up from manual versions. They combine some degree of automation with manual operation, making them suitable for medium-scale production.

• Key Features :
  • Automated stencil alignment using basic vision systems.
  • Faster and more consistent than manual printers.
  • Moderate pricing compared to fully automated machines.
• Ideal for :
  Businesses transitioning from manual to automated production, where speed and precision need to improve without incurring high costs.

Fully Automatic Printers

Fully automatic solder paste printers are the industry standard for large-scale PCB manufacturing. They operate with minimal human intervention and are packed with advanced features.

• Key Features :
  • Fully automated vision-guided alignment and paste application.
  • High-speed operation with exceptional accuracy.
  • Integrated quality control systems to detect defects in real time.
• Advantages :
  • Handles large production volumes effortlessly.
  • Consistent performance with reduced waste.

While they come with a higher price tag, fully automatic printers are a long-term investment for manufacturers aiming for top-notch efficiency and quality.

Benefits of Using a Solder Paste Printer Machine

Investing in a solder paste printer machine offers numerous advantages that make it a cornerstone of modern PCB assembly.

Improved Accuracy and Consistency

One of the most significant benefits is the machine’s ability to deliver consistent and accurate results.

• Precision Application : The use of stencils and vision systems ensures that solder paste is applied exactly where needed, minimizing defects.
• Reduced Errors : Automation eliminates the possibility of human error, leading to higher-quality boards.

Imagine assembling a puzzle—accuracy in placing each piece ensures the final picture is flawless. Similarly, solder paste printers ensure every component fits perfectly.

Enhanced Productivity and Efficiency

Solder paste printers significantly speed up the PCB manufacturing process.

• Faster Production : Automation allows for quicker paste application compared to manual methods.
• Streamlined Workflow : Machines are designed to integrate seamlessly with other PCB assembly processes, reducing downtime.

For manufacturers dealing with high-volume orders, this boost in productivity translates directly into higher profits.

Cost-Effectiveness in High-Volume Production

Though the initial investment might seem steep, solder-paste printers save money in the long run.

• Lower Material Waste: Precision printing minimizes the wastage of expensive solder paste.
• Reduced Labor Costs: Automation reduces the need for manual labor, saving on wages and training expenses.

In essence, the machine pays for itself by increasing output and reducing operational costs.

Factors to Consider When Choosing a Solder Paste Printer Machine

Selecting the right solder paste printer machine for your production needs is critical. Here are some factors to keep in mind when making your choice:

Level of Automation

The degree of automation should match your production requirements.

• Manual Printers : Ideal for small-scale or hobbyist operations with limited budgets.
• Semi-Automatic Printers : Suitable for mid-sized businesses looking to improve accuracy and speed.
• Fully Automatic Printers : The go-to choice for high-volume manufacturers needing efficiency and consistency.

Assessing your production goals will help you decide on the right level of automation.

Budget and ROI

While manual printers are cost-effective initially, fully automatic printers offer a better return on investment for larger operations.

• Consider both upfront costs and long-term savings.
• Factor in reduced waste, lower labor expenses, and increased production speed.

Investing in the right machine can lead to significant cost savings over time.

Precision and Quality Requirements

Different industries have varying standards for precision. For example:

• Consumer Electronics : High precision is crucial for compact devices.
• Industrial Equipment : Slightly lower precision might be acceptable.

Choose a machine that meets the specific quality demands of your products.

Integration with Existing Systems

Modern solder paste printers often integrate with other assembly equipment. Look for machines that offer:

• Seamless compatibility with pick-and-place machines.
• Data-sharing capabilities for process optimization.

This ensures a smoother manufacturing workflow.

Common Challenges in Solder Paste Printing and How to Overcome Them

Even with advanced machines, solder paste printing isn’t without its challenges. Let’s explore some common issues and solutions.

Misalignment Issues

Misalignment between the stencil and the PCB can result in poor paste application.

• Cause : Incorrect setup or worn-out alignment systems.
• Solution : Regularly calibrate the printer’s vision and alignment systems.

Uneven Paste Application

Uneven solder paste can lead to weak solder joints or defects.

• Cause : Improper stencil thickness or worn-out squeegees.
• Solution : Use high-quality stencils and maintain the squeegee system regularly.

Solder Paste Smearing

Smearing occurs when excess paste spreads beyond the intended areas.

• Cause : Excessive pressure during paste application.
• Solution : Adjust the squeegee pressure and printing speed to optimal levels.

Cleaning and Maintenance Issues

Neglecting regular maintenance can reduce the machine’s efficiency.

• Cause : Build-up of dried paste in the stencil or machine parts.
• Solution : Implement a routine cleaning schedule to prevent paste build-up.

Conclusion

Solder paste printer machines are indispensable tools in the world of PCB manufacturing, offering unparalleled precision, efficiency, and cost-effectiveness. Whether you’re running a small prototyping operation or managing large-scale production, choosing the right solder-paste printer machine can transform your workflow, ensuring consistent quality and faster output. By understanding the types of machines, their components, and common challenges, you can make informed decisions that align with your business goals.

FAQs

Can a solder paste printer machine handle different PCB sizes?
Yes, most modern machines are designed to accommodate a variety of PCB sizes. However, it’s essential to verify the machine’s specifications to ensure compatibility with your requirements.

How often should the stencil be replaced?
The stencil’s lifespan depends on usage and maintenance. With proper care, high-quality stencils can last through thousands of print cycles.

Is manual solder paste printing still relevant?
While less efficient than automated options, manual printing is still relevant for prototyping, repairs, or low-volume production.

What is the primary advantage of a fully automatic solder paste printer?
Fully automatic printers offer unmatched precision, speed, and consistency, making them ideal for high-volume production lines.

How do I ensure proper alignment between the PCB and stencil?
Modern machines use vision systems for alignment. For manual or semi-automatic printers, careful setup and regular calibration are essential.
