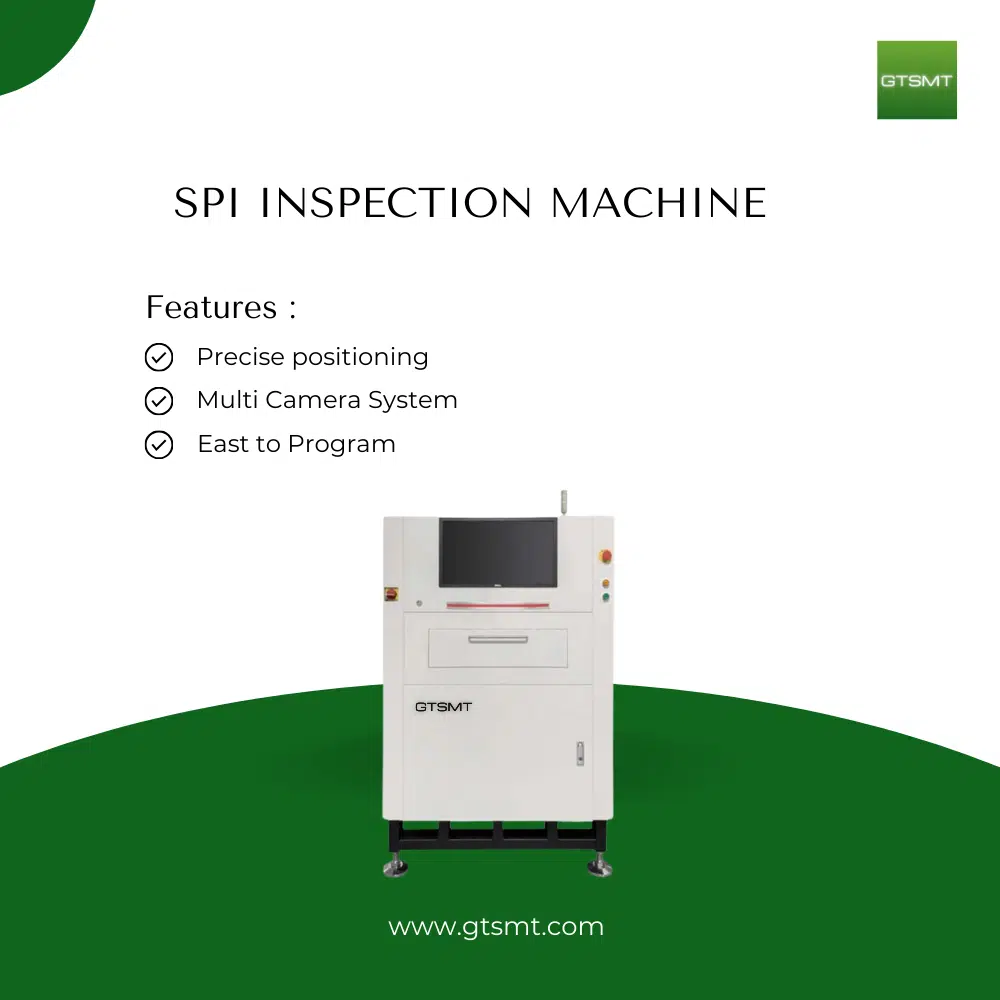

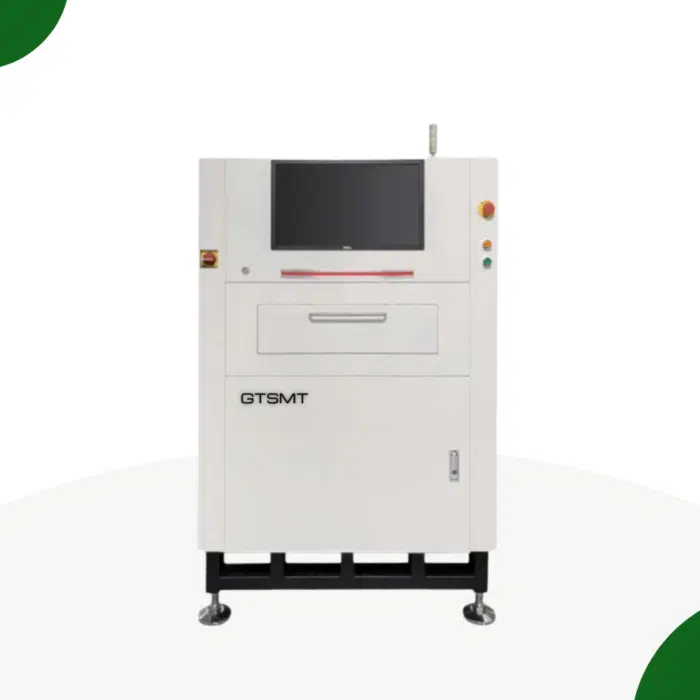

SPI Inspection Machine SPX
2D-SPX (Solder Paste Inspection) Machine is a type of inspection equipment used in Surface Mount Technology (SMT) assembly lines to inspect solder paste deposited on printed circuit boards (PCBs). The machine ensures that solder paste is applied accurately and uniformly to avoid defects during the component placement and soldering processes.
Description
SPI Inspection machine SPX
| Model | Single rail | Dual rails | Bot Inspect | Both sides Inspect |
| Camera | Standard: 5 million pixel industrial camera (optional: 12 million pixel industrial camera) | Standard: 12 million pixel industrial camera | ||
| Lens | Telecentric lens | |||
| Light source | RGB three-color light | |||
| Resolution | Standard :15ฮผm
Option: 10ฮผm |
Standard :16.5ฮผm
Option: 10ฮผm |
||
| Field of view | 10ฮผm: 24*20mm ย ย 15ฮผm: 36*30mmย ย ย ย 25ฮผm: 57*48mmย ย ย ย ย ย ย ย 10ฮผm๏ผ40*30mm ย 16.5ฮผm๏ผ64*48mm | |||
| PCB size | 460mm*350mm | Single rail: 460mm*560mm
Dual rials:460mm*300mm |
510mm*460mm | |
| PCB Thickness | 0.3~5mm | |||
| Clip width | 3mm | |||
| Clear height | Factory standard: TOP:30mm BOT:45mm
Max adjustable: TOP:45mm BOT:45mm |
Factory Standard:ย BOT:30mm
Max adjustable: BOT:50mm |
Factoryย Standard: TOP:50mm BOT:30mm
Max adjustable:TOP:80mm BOT:50mm |
|
| Inspect weight | 3KG | 5KG | ||
| Inspect speed | 230~300ms/FOV | |||
| XY axis | Servo motor | |||
| Operate system | Windows10 64bit | |||
| Voltage | AC220V,50/60Hz | |||
| Pressure | 0.5Mpa | |||
| Height | 900ยฑ20mm | 900ยฑ20mm๏ผcan be customized๏ผ | ||
| Weight(kg) | 700 | 800 | 800 | 1200 |
| Machine size(excluding warning lights) | L892*W1090*H1585mm | L892*W1445*H1585mm | L1080*W1493*H1615mm
|
L1080*W1493*H1615mm |
| SMT inspection items | wrong parts, missing parts, reverse, offset, upright, sideways, flipped parts, damaged, short circuit, insufficient tin, cold solder joint, empty solder joint, overflow glue, exposed copper, pin lift, pin deformation | |||
| THT test items | no tin, insufficient tin, excessive tin, voids, short circuits, exposed copper, false soldering, buried pins, tin balls, foreign matter | |||
Precise positioning
SPI inspection machine uses a distortion-free telecentric lens, a multi-reference point calibration method, and automatic detection window positioning, including dual positioning of the pad and the body, which solves the frame deviation problem caused by board deformation and greatly reduces false alarms!
Incoming material differences
SPI inspection machine in smt Uses multi-level color picking, which is more compatible with material color differences! Effectively avoid false alarms caused by material color differences!
Cost advantages brought by centralized remote management
After improving the pass rate, centralized management can greatly reduce the need for personnel!
Proactive service/real-time monitoring
Remote customer service can monitor equipment data anomalies in real time and provide 24-hour full-time monitoring to ensure that production companies can detect production problems in time and improve production efficiency.
Programmable Structured Grating (PSLM) technology
Uses phase modulation profilometry (PMP) technology to achieve three-dimensional measurement of precision printed solder paste, greatly improving measurement accuracy while ensuring high-speed measurement.
High-resolution image processing system
Provides a variety of different detection accuracy such as 2.8ฮM, 4.5ฮM, 5ฮM, 7ฮM, 8ฮM, 10ฮM, 12ฮM, 15ฮM, 18ฮM,
20ฮM, etc. to meet the customer’s product diversity and detection speedย requirements.
axis dynamic compensation + telecentric lens static compensation
The high-cost telecentric lens and dedicated software test algorithm are used to solve the problems of squint and deformation of ordinary lenses, greatly enhancing the detection accuracy and detection capabilities. The industry-leading dynamic compensation + staticย compensation FPC warping is achieved.
High-precision integrated control platform
High-strength steel integrated structure, standard servo motor with high-precision grinding-grade ball screw and guide rail, high-speed and stable movement. The optional linear motor and high-precision grating ruler can perform ultra-precise and fast measurements of 03015 component solder paste, and the repeatability can reach 1UM.
Five-minute programming and one-button operation for spi inspection
By importing the GERBER module and the friendly programming interface, engineers of any level can independently and quickly perform programming accurately. The one-button operation designed for operators also greatly reduces the training pressure.
Powerful process analysis (SPC)
Real-time SPC information display provides users with strong quality control support. A complete and diverse SPC tool allows
users to see at a glance. And supports data output in different formats.
