6 zones reflow oven
GTSMT Reflow Oven Technology has been launching the latest research and development of the curing oven which is mainly used for the stress of reinforced material combination, resin curing,g, and drying process.
Description

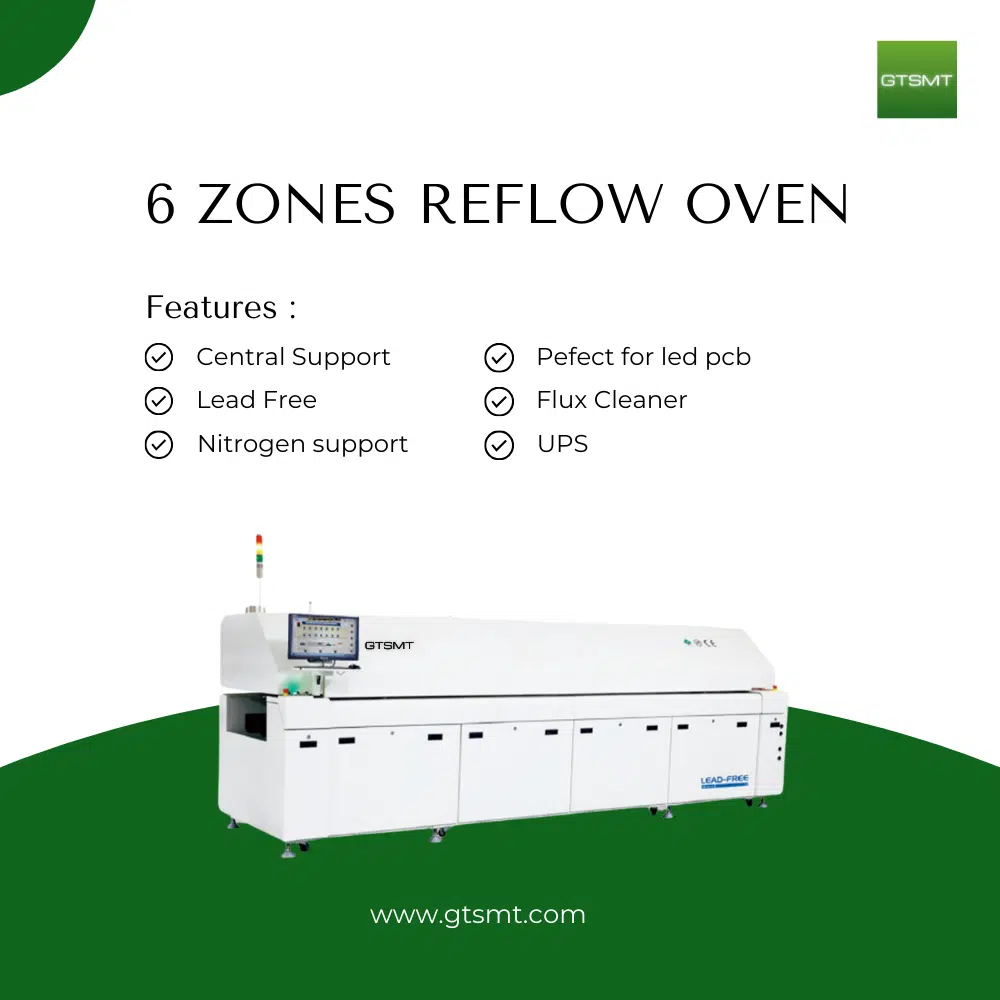

6 zones Reflow oven machine GT-R6
PCB Soldering Oven Core Technology
Long effective 6 reflow heating zonesย
Long effective heating zone in the industry, with reasonable distribution from top to bottom, uniform and sufficient heat conduction, greatly improving heating efficiency, Adopting customized heating wire from GTSMT, it has high heating efficiency and long service life.

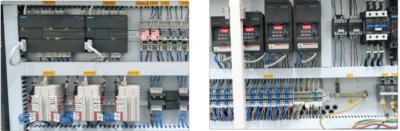

Imported Hardware for reflow oven machineย
The control system adopted with Siemens PLC & modular circuit to stabilize and accurate repeat precision
Adopted foreign famous brand material as its major parts, which has guaranteed durability and reliability.

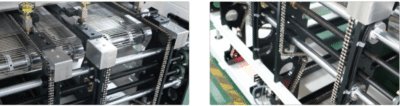

Conveyor with well parallel and transmission is stable
The rail is dealt with through a hardened process to make it more stable. Segment design that can release the pressure makes guide rail more durable, not easy to bend and deform also not drop board.

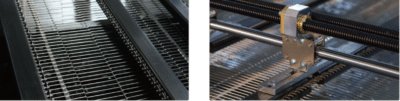

Mesh belt and chain transmission
The conveyor system adopts both a mesh belt and chain, which is suitable for the efficient production of various products.
The chain adopts the automatic tensioning design to ensure that the long-term use is not loose and the board will not drop.
Simple operation management
An alternative to the Win 10 operation system English interface is available on the screen. The intelligent diagnosis system has the functions of Trouble Remind, Alarm list-out, and Report Saving, All production data will be backed up automatically and easily for lS0 9000 management.
Reflow Oven Specifications
| No. | System | Item | GT-R6 Reflow Oven |
|---|---|---|---|
| 1 | Size and Power | Dimension (L*W*H) mm | 4400*1400*1635 |
| 2 | Exhaust Volume | 10mยณ/min*2(Channel) | |
| 3 | Power Supply | 3ฯ 380V/220V 50/60HZ | |
| 4 | Startup Power | 22KW | |
| 5 | Normal Power Consumption | 9-10KW | |
| 6 | Heating System | No. of Heating Zone | Top6 Bottom6 or Top7 Bottom7 |
| 7 | Length of Heating Zone | 3100mm | |
| 8 | Warming Time | Approx 5-15min | |
| 9 | Temperature Setting Range | Room temperature – 200ยฐC | |
| 10 | Temperature Control Type | PID closed-loop control, SSR driven | |
| 11 | Temperature Control Precision | ยฑ1ยฐC | |
| 12 | Temperature Deviation on PCB | ยฑ2ยฐC | |
| 13 | Cooling System | No. of Cooling Zone | 1 or 2 |
| 14 | Cooling Method | Air cooling | |
| 15 | Rail Structure | Integral segmented | |
| 16 | Max. PCB Size | 500mm | |
| 17 | Chain Structure | Single pin buckles | |
| 18 | Transport System | Component Height | Top 100mm Bottom 25mm |
| 19 | Auto-Lubrication | Automatic+Manually | |
| 20 | Conveyor Height | 900ยฑ20mm | |
| 21 | Conveyor Direction | L-R (R-L Option) | |
| 22 | Conveyor Speed | 0~2000mm/min | |
| 23 | Fixed Rail Side | Front rail fixed |
