Automatic vacuum loader and unloader
Automatic vacuum loader and unloader is fully enclosed to ensure a safe level of operation
User-friendly ‘soft touch’ LED control panel
Adjustable position of the suction nozzle to ensure the circuit boards is clamped
Parallel and smooth width adjustment (lead screw)
Smooth and precise translation (stepper motor)
Minimize the clearance between the conveyor
The machine size can be specified, and the main body is welded by sheet metal bending, with a special design of guide rail aluminum slot to prevent board getting stuck.
The LED tricolor working indicator is controlled by 7 inch color human-machine interface with SMEMA compatibility
Description

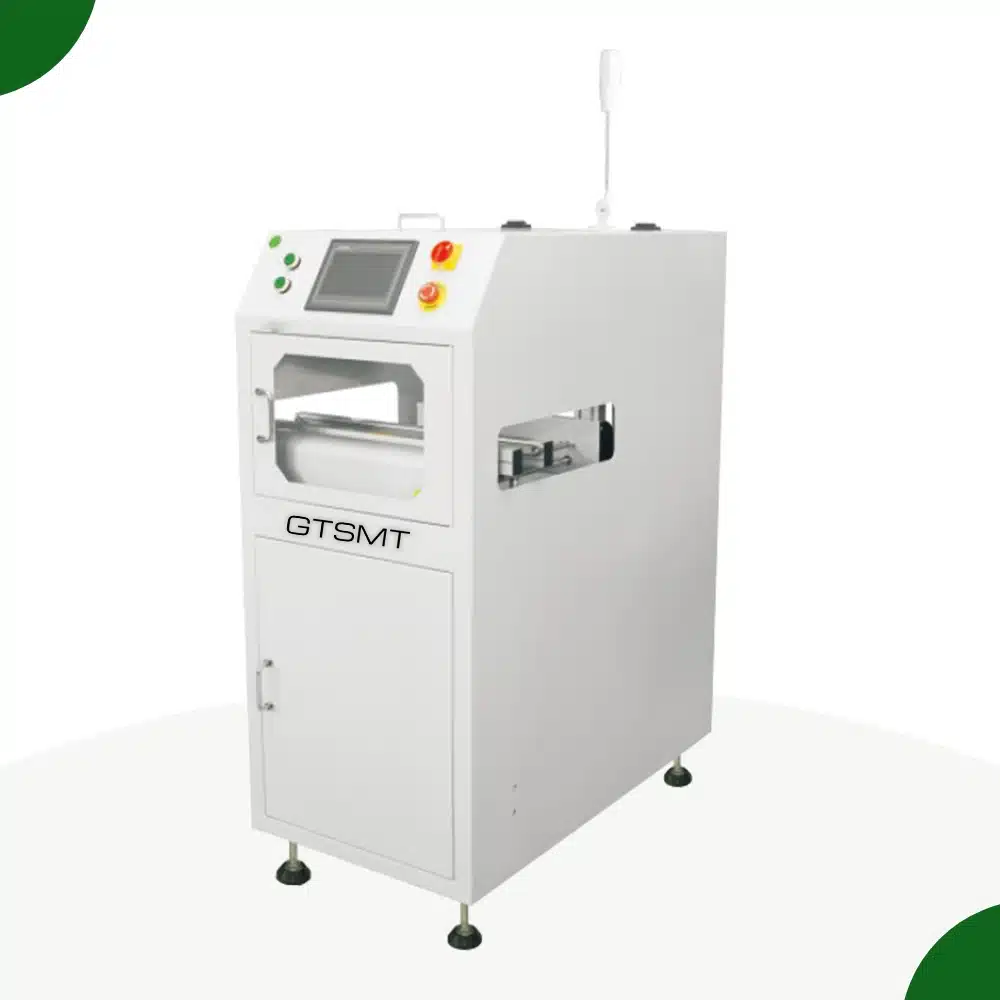

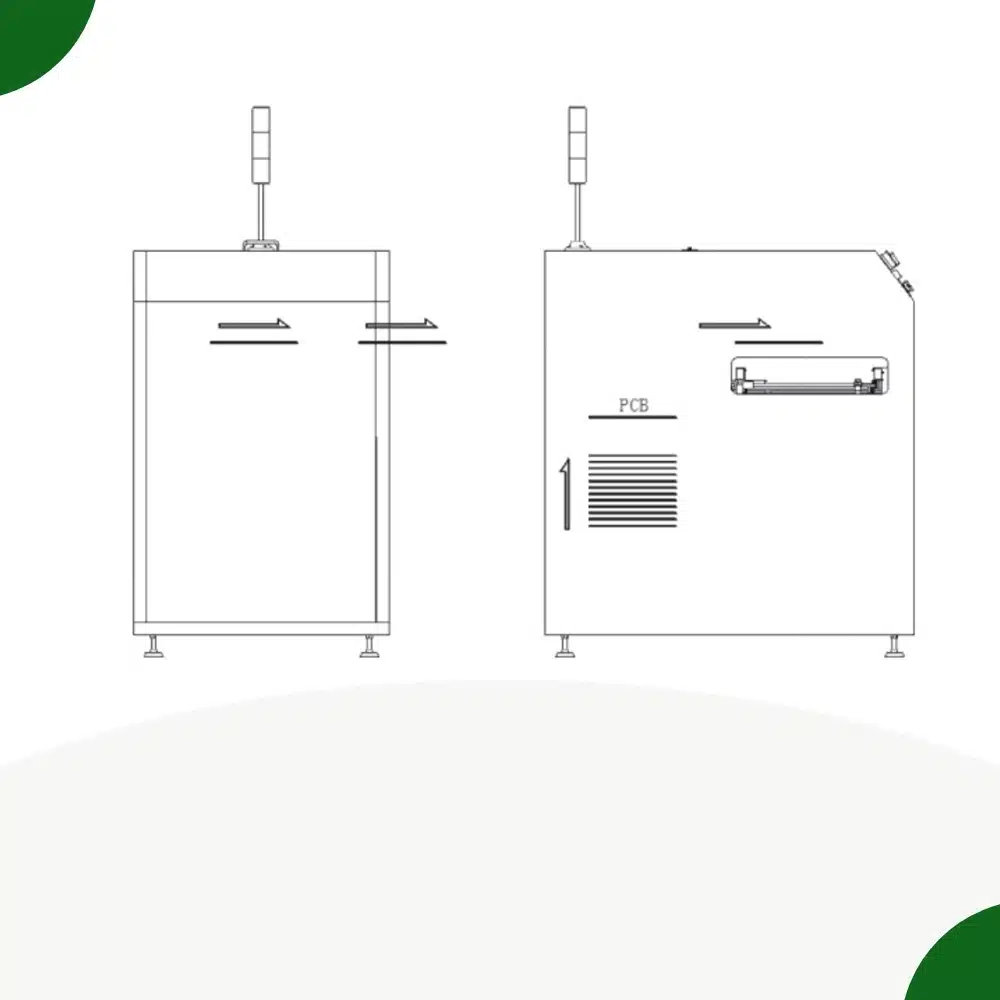

Automatic Vacuum Loader and Unloader
The Automatic Vacuum Loader and Unloader is a precision-engineered PCB handling system that uses vacuum suction technology to load and unload bare or assembled PCBs without physical contact. Designed for delicate, thin, or warped boards, this equipment ensures safe, reliable, and damage-free transfer at both the start and end of SMT production lines.
Non-Contact PCB Handling for SMT Lines
The system features adjustable suction strength, smart alignment sensors, and full SMEMA compatibility, making it ideal for modern high-speed PCB assembly lines. It integrates easily with belt conveyors, inspection machines, and pick-and-place systems, and is especially effective in high-mix, high-precision environments.
Product technical parameters
| Description | Automatic Vacuum Loader and Unloader is used for loading PCB boards in the SMT line. |
| Cycle time | Approx. 12 seconds (or customer specified) |
| Max. PCB storage capacity | 400pcs (0.6mm thickness board) |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max. 150VA |
| Air pressure and consumption | 4-6 bar; max. 30ltr/min |
| Transport height | 900 ± 20mm (or customer specified) |
| Transport direction | From left to right or right to left |
Product core parts configuration:
| Motor | VTV |
| PLC | Panasonic |
| Elevating screw | Full-set Taiwan TBI |
| Magnet switch | SMC |
| Air cylinder | SMC |
| Limit switch | Omron |
| Sensor | Omron |
| Relay | Omron |
| Switching-mode power supply | Omron |
Product specification:
| Model | Dimension
(L × W × H, mm) |
PCB board size | Magazine size
(L × W × H, mm) |
Weight
(kg) |
| GT-250 | 600*1002*1300 | 50*50-445*330 | 355*320*563 | 130 |
| GT-390 | 800*1270*1300 | 50*50-530*460 | 535*460*563 | 150 |
Key Applications of Automatic vacuum loader and unloader
• Used to load or unload fragile or thin PCBs in SMT assembly lines
• Ideal for boards that cannot be handled reliably by pushers or magazine systems
• Common in the production of mobile devices, medical electronics, and flexible circuits
• Works with inline SMT conveyors, PCB buffer systems, and inspection equipment
Usage Benefits
• Prevents board warping, scratching, or bending during transfer
• Fully automated for labor savings and increased throughput
• Enhances process reliability in high-precision manufacturing environments
• Supports high-speed SMT lines with minimal manual intervention
