Compact board PCB loader
- Panasonic PLC control system.
- Owing to a solid and stable design
- Special sheet-metal and aluminum-alloy construction
- LED tricolor indicative working lights
- The upper part of the bin has 4 kinds of PITCH selections, which can set the step distance of the feeding PCB board
- A user-friendly’ soft touch control panel or touch screen can be selected
- Top and bottom pneumatic clamps can ensure the positioning accuracy of the magazine
- The special pneumatic structure design ensures zero PCB breakage
- Owning an automatic diagnosing fault and display code function
- Durable cable with long service life
- SMEMA compatible
Description

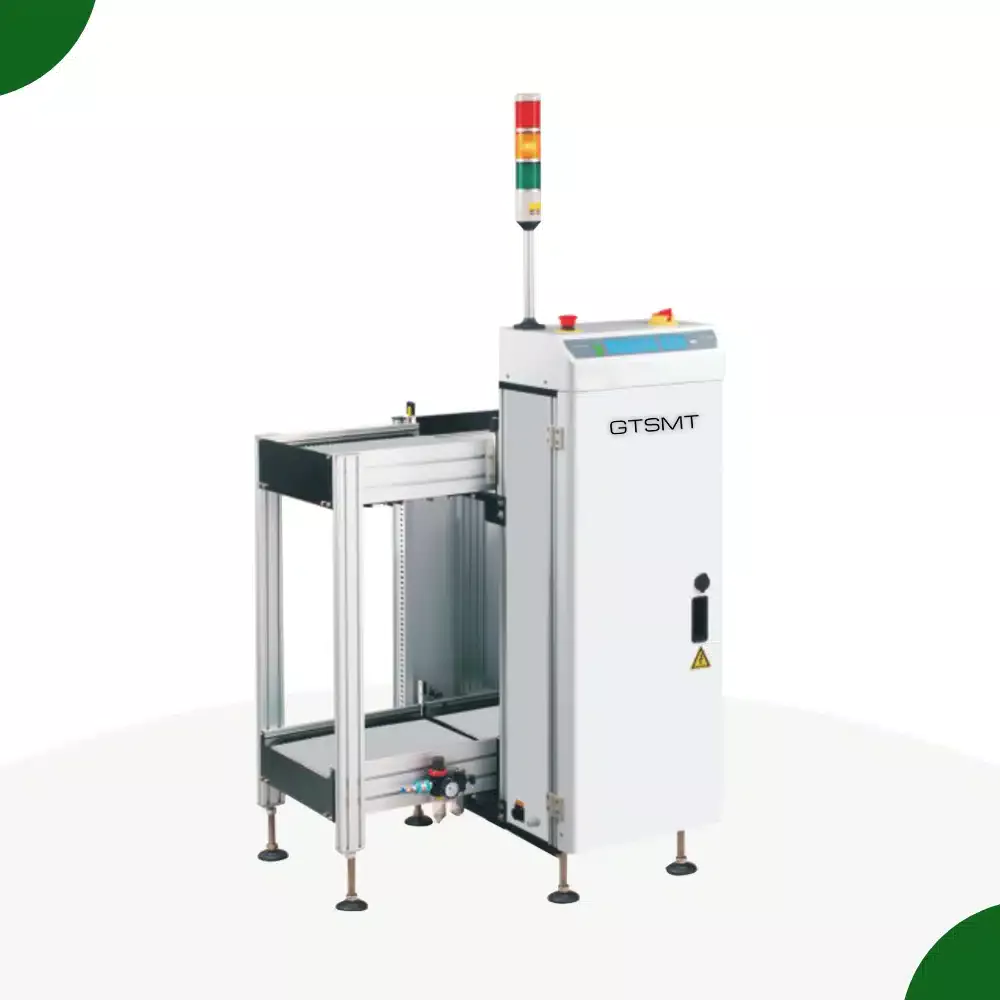

Compact Board PCB Loader
Compact board PCB Loader is a high-efficiency, space-saving PCB loading machine designed to automatically feed bare or pre-assembled PCBs into the start of an SMT production line. Its compact footprint makes it ideal for facilities with limited space, without compromising on performance or automation capabilities.
Space-saving Automated Board Feeding Solution
Built with an ergonomic vertical design, this loader utilizes a stacking mechanism or magazine system to transfer PCBs smoothly onto the connected belt conveyor or edge rail system. It is fully SMEMA-compatible, ensuring quick integration with screen printers, pick-and-place machines, and inspection systems.
Product technical parameters
| Description | Compact board PCB Loader is used for loading of PCB boards in the SMT line. |
| Number of magazines | Upper conveyor: 1 magazine;
lower conveyor: 1 magazine |
| PCB feed time | Approx. 6 seconds (or customer specified) |
| Magazine replacement time | Approx. 30 seconds (or customer specified) |
| Indexing pitch | 10, 20, 30, 40mm (or customer specified) |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max. 300VA |
| Air pressure and consumption | 4-6 bar; max. 10ltr/min |
| Transport height | 900 ± 20mm (or customer specified) |
| Transport direction | From left to right or right to left |
Product core parts configuration:
| Motor | VTV |
| PLC | Panasonic |
| Elevating screw | TBI |
| Touch screen | Qinglan |
| Magnet switch | SMC |
| Air cylinder | SMC |
| Limit switch | Omron |
| Sensor | Omron |
| Relay | Omron |
| Switching-mode power supply | Omron |
| Flexible cable | Germany Igus |
Product specification:
| Model | Dimension
(L × W × H, mm) |
PCB board size | Magazine size
(L × W × H, mm) |
Weight
(kg) |
| GT-250 | 850*765*1250 | 50*50-330*250 | 355*320*563 | 120 |
| GT-330 | 1250*845*1250 | 50*50-445*330 | 460*400*563 | 180 |
Key Applications of compact board pcb loader
• Installed at the beginning of SMT lines to supply PCBs for assembly
• Suitable for high-mix, low-volume, or space-constrained production environments
• Used across industries such as consumer electronics, LED manufacturing, automotive, and medical devices
• Works seamlessly with belt conveyors, rail-type PCB conveyors, and other inline SMT equipment
Usage Benefits: Compact board PCB loader
• Saves floor space with its compact vertical structure
• Reduces manual labor by automating the board loading process
• Increases productivity and consistency at the start of the line
• Supports flexible production line configurations with adjustable settings
