NG OK Automatic PCB Unloader
- It’s applied to receive the NG or OK boards after the AOI
- Owing to a solid and stable design
- Smooth and precise translation (stepper motor)
- LED tricolor indicative working lights
- A user soft touch control panel or touch screen can be selected
- Top and bottom pneumatic clamps can ensure the positioning accuracy of the magazine
- The special pneumatic structure design ensures zero PCB breakage
- Owning an automatic diagnosing fault and display code function
- Durable cable with long service life
- SMEMA compatible
Description
NG OK Automatic PCB Unloader

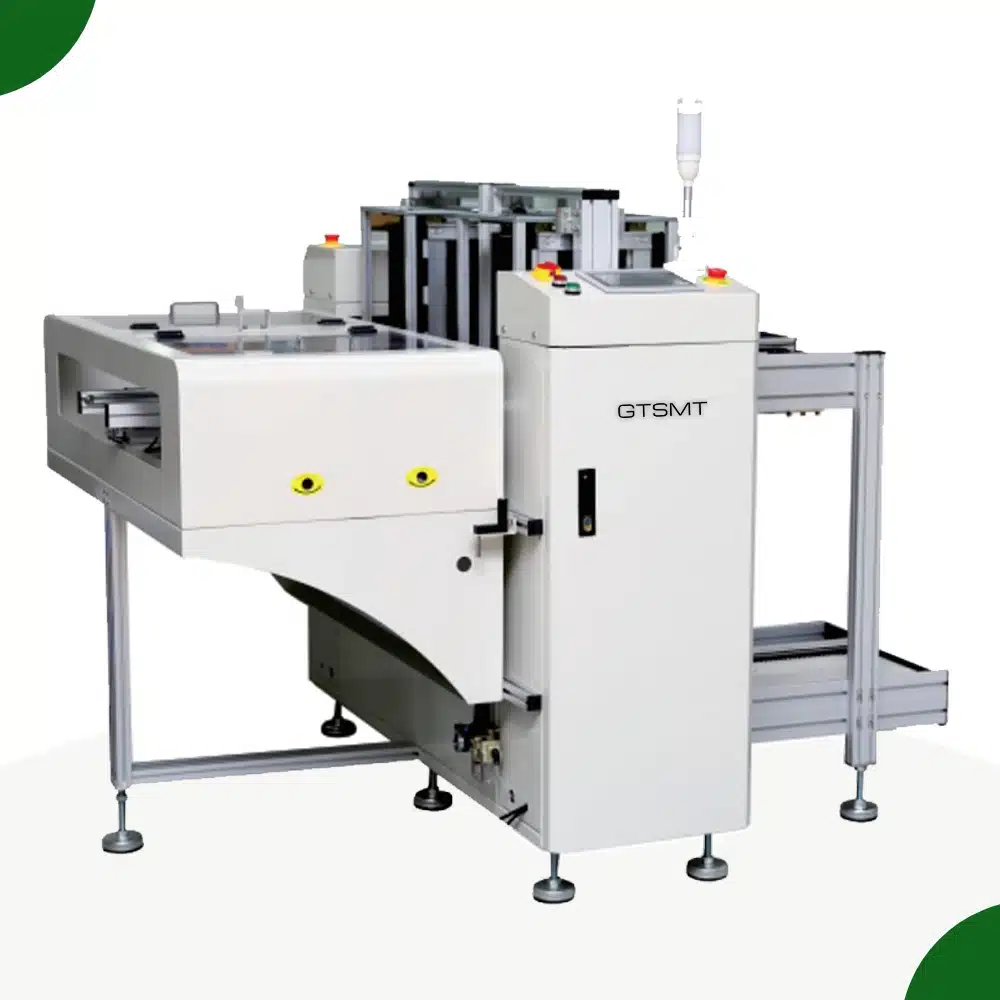

NG OK Automatic PCB Unloader is a precision-engineered PCB handling machine designed to automatically separate and unload good (OK) and defective (NG) PCBs after inspection or testing stages in an SMT production line. This intelligent PCB unloader uses programmable logic and sensors to direct OK boards into one magazine and NG boards into another, improving sorting efficiency, traceability, and reducing manual intervention.
Smart Sorting Solution for SMT Lines

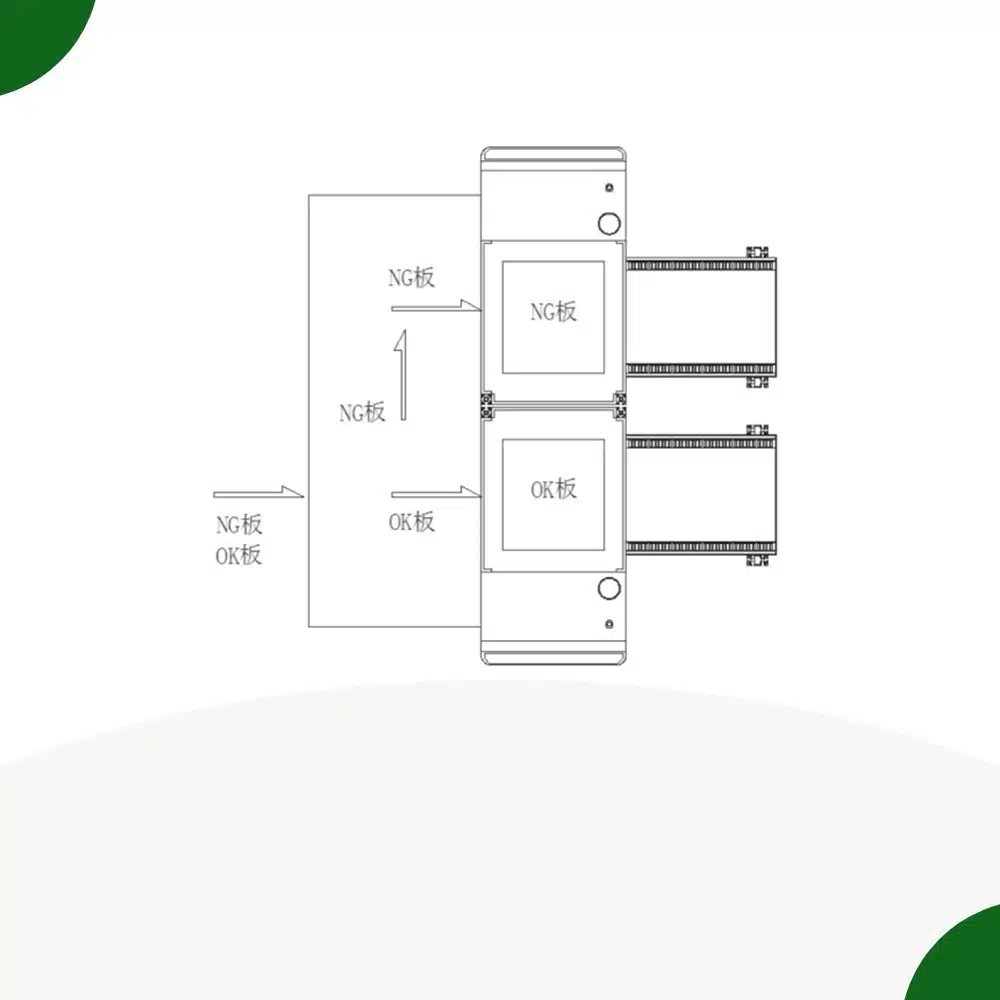

It is typically used after AOI machines, ICT testers, or functional testers, where real-time judgment is made on board quality. The system can be integrated into both single-lane and dual rail conveyor configurations, and its smooth belt conveyor or pusher mechanism ensures safe PCB transport without damage.
Product technical parameters
| Description | NG OK Automatic PCB Unloader is used for unloading boards after AOI in the SMT line. |
| Number of magazines | Upper conveyor: 1 magazine;
lower conveyor: 1 magazine |
| Magazine replacement time | Approx. 30 seconds (or customer specified) |
| Indexing pitch | 10, 20, 30, 40mm (or customer specified) |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max. 300VA |
| Air pressure and consumption | 4-6 bar; max. 10ltr/min |
| Transport height | 900 ± 20mm (or customer specified) |
| Transport direction | From left to right or right to left |
Product core parts configuration
| Motor | VTV |
| PLC | Panasonic |
| Bearing | NSK |
| Touch screen | Qinglan |
| Magnet switch | SMC |
| Air cylinder | SMC |
| Sensor | Omron |
| Limit switch | Omron |
| Inductive switch | Omron |
| Relay | Omron |
| Switching-mode power supply | Omron |
Product specification
| Model | Dimension
(L × W × H, mm) |
PCB board size | Magazine size
(L × W × H, mm) |
Weight
(kg) |
| GT-250 | 1800*1435*1250 | 50*50-330*250 | 355*320*563 | 310 |
| GT-330 | 2065*1690*1250 | 50*50-445*330 | 460*400*563 | 340 |
| GT-390 | 2330*1810*1250 | 50*50-530*390 | 535*460*563 | 370 |
| GT-460 | 2330* 1950* 1250 | 50*50-530*460 | 535*530*563 | 400 |
Key Applications: NG OK Automatic PCB Unloader
Installed after inspection stages like AOI and SPI inspection, and test equipment for automatic sorting
Used in SMT production lines requiring precise separation of NG and OK boards
Ideal for high-volume electronics manufacturing with strict quality control
Compatible with magazine-type PCB loaders and unloaders for seamless integration
Usage Benefits
Automates NG OK sorting to reduce labor costs and human error
Improves quality management and traceability in SMT assembly lines
Supports fast, accurate, and safe unloading of PCBs
Reduces downtime and enhances overall production efficiency
