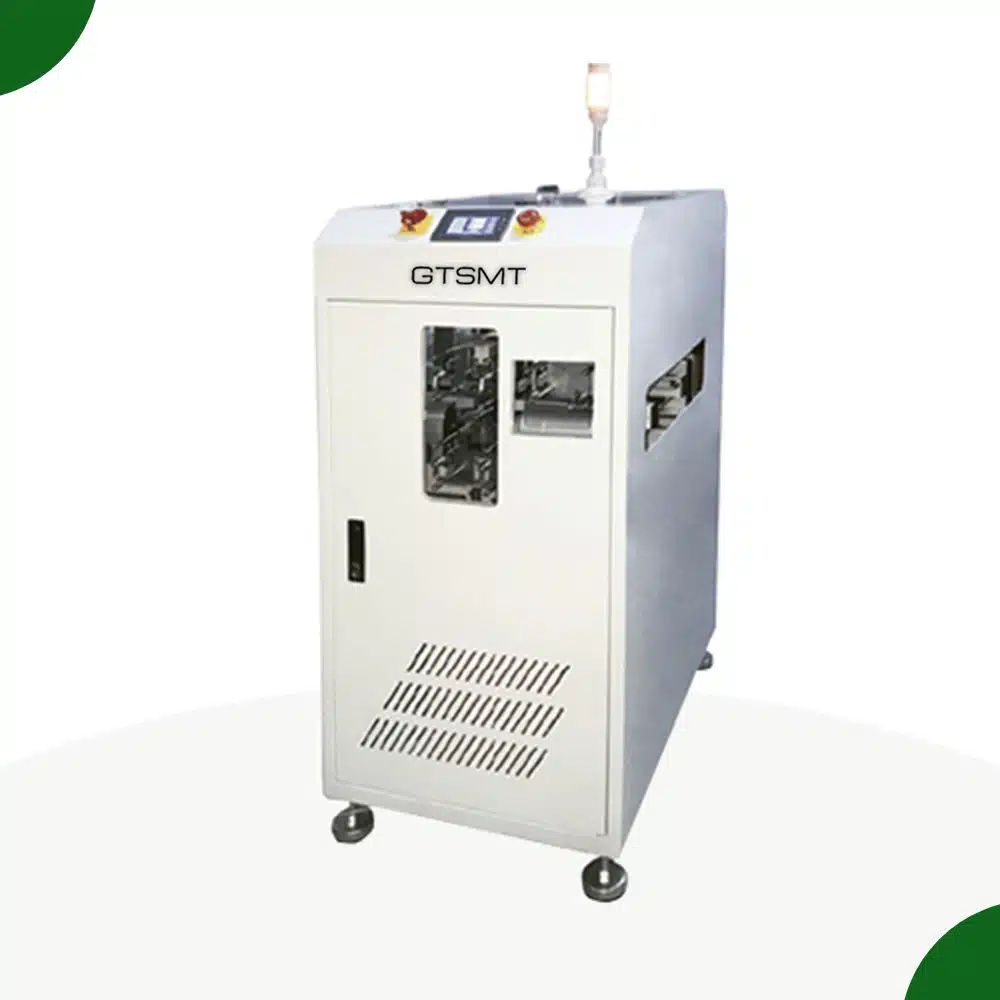

PCB Cleaning Conveyor
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)
- User-friendly membrane control panel
- Parallel and smooth width adjustment (leadscrew)
- Multiple dust elimination designs, with dedusting efficiency reaching 99%
- Enclosed design ensures the highest level of operational security
- Drawer design, convenient maintenance
- Small machine footprint
- SMEMA compatible
Categories: PCB Conveyor, PCB Handeling machine
Description
PCB Cleaning Conveyor
The PCB Cleaning Conveyor is a specialized inline machine designed to remove dust, particles, and static from the surface of printed circuit boards during the SMT production process. Positioned typically before solder paste printing or after routing processes, it ensures that PCBs enter critical stages in a clean, contaminant-free condition. The machine uses anti-static brushes, ionizing air blowers, and vacuum systems to thoroughly clean both the top and bottom surfaces of the boards without causing damage or scratches.
Fully compatible with standard SMT lines, the cleaning conveyor can operate independently or as part of a continuous production flow. It improves soldering reliability and reduces defects caused by dust or debris, especially important for high-precision or fine-pitch component assembly.
Specification:
Description | Dedusting the surface of foreign substances & eliminating static electricity |
Speed | 0-9M/min adjustable |
PCB thickness | 0.6-5mm |
Power supply | AC 110/220 volts; single phase |
Power | Max. 100VA |
Air pressure and consumption | 4-6 bar; max. 48ltr/min |
Transport height | 900 ± 20mm (support customization) |
Transport direction | L to R/R to L |
Dimension:
Model | Dimension
(L × W × H, mm) |
PCB board size (LxWxH, mm) | Weight
(kg) |
GT-330 | 550*680*1200 | 50*50-445*330 | 120 |
GT-460 | 550*850*1200 | 50*50-530*460 | 160 |
Key Applications of PCB Cleaning Conveyor
Pre-cleaning PCBs before solder paste printing
Removing debris after routing or drilling processes
Preparing boards for sensitive assembly steps like BGA or QFN mounting
Inline cleaning between different SMT stages to reduce contamination risks
Usage Benefits
Improves solder joint quality and process yield
Reduces rework and inspection failures caused by contaminants
Minimizes static buildup during board handling
Protects sensitive components and increases overall assembly reliability
