Pcb Conveyor
High quality adjustable speed SMT conveyor, PCB turn conveyor, translation shuttle conveyor, high-end SMT upscale inspection conveyor, high-end dual-lane SMT upscale inspection conveyor, PCB standard reject conveyor, SMT sealing conveyor, PCB barcode scanning conveyor, for SMT SMD Production Line.
1. This equipment is usually used to transfer and cooling PCBA after reflow soldering.
2.Rugged steel design, improves equipment stability.
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
Description

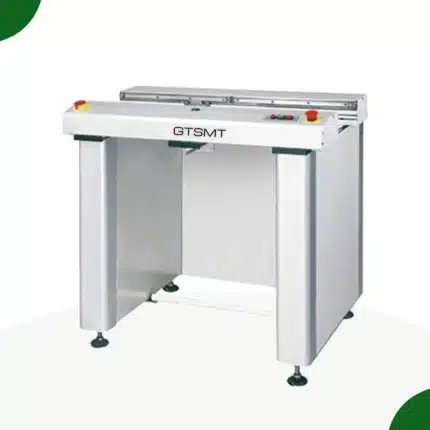

 PCB Conveyor Machine
The smt PCB Conveyor Machine is an advanced equipment designed to facilitate the smooth and efficient transfer of PCBs along SMT assembly lines. It is a critical link between different stages of the production process, ensuring seamless connectivity and uninterrupted workflow.
| Body Material |
European standard aluminum alloy |
China | ||||
| Sensor | Omron | Japan | ||||
| Rail | Aluminum (mold making) | China | ||||
| Belt | 12mm antistatic belt | China | ||||
| Guide Screw | High-precision ball screw | Taiwan | ||||
| Model | GT-CY500 | GT-CY600 | GT-CY1000 | GT-CY1200 | GT-CY1500 | GT-CY2000 |
| Rail Length | 500 mm | 600 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
| Dimension(mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
| PCB Width | 50 to 350 mm | |||||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||||
| Weight | 80 Kg | 80 Kg | 85Â Kg | 115Â Kg | 155 Kg | 180Â Kg |
Key Features:
- Smooth Transfer Mechanism: Ensures precise and stable PCB movement to maintain production consistency.
- Adjustable Conveyor Width: Compatible with various PCB sizes, allowing for flexibility in production.
- Speed Control: Adjustable conveyor speed to match the specific requirements of the assembly line.
- ESD-Safe Design: Built with anti-static materials to protect sensitive electronic components.
- Robust Construction: High-quality materials and components ensure durability and long service life.
- User-Friendly Interface: Simple controls for easy operation and quick setup.
- Integrated Safety Features: Includes sensors and emergency stop buttons to ensure operator safety.
Applications:
- PCB assembly in Surface Mount Technology (SMT) lines
- Testing and inspection processes for PCBs
- Linking equipment in automated production systems
Benefits:
- Improves production efficiency by optimizing PCB transfer
- Reduces manual handling, minimizing the risk of damage
- Ensures a consistent workflow across the assembly line
The PCB Conveyor Machine is an essential tool for modern electronics manufacturing, offering reliable performance and enhanced productivity for any production setup.
