- Reject, inspect, and bypass modes provided
- Modular design
- Stability enhanced by ‘robust design’
- Inducing multi-zone position accuracy
- Ergonomic design makes the arms rest
- Customize machine length according to the customer’s requirement
- Customize the number of multi-zones according to the customer’s requirement
- Variable speed control
- Store up to 5 boards, total height: 20mm
- Compatible SM EMA interface
Description
PCB Reject Conveyor

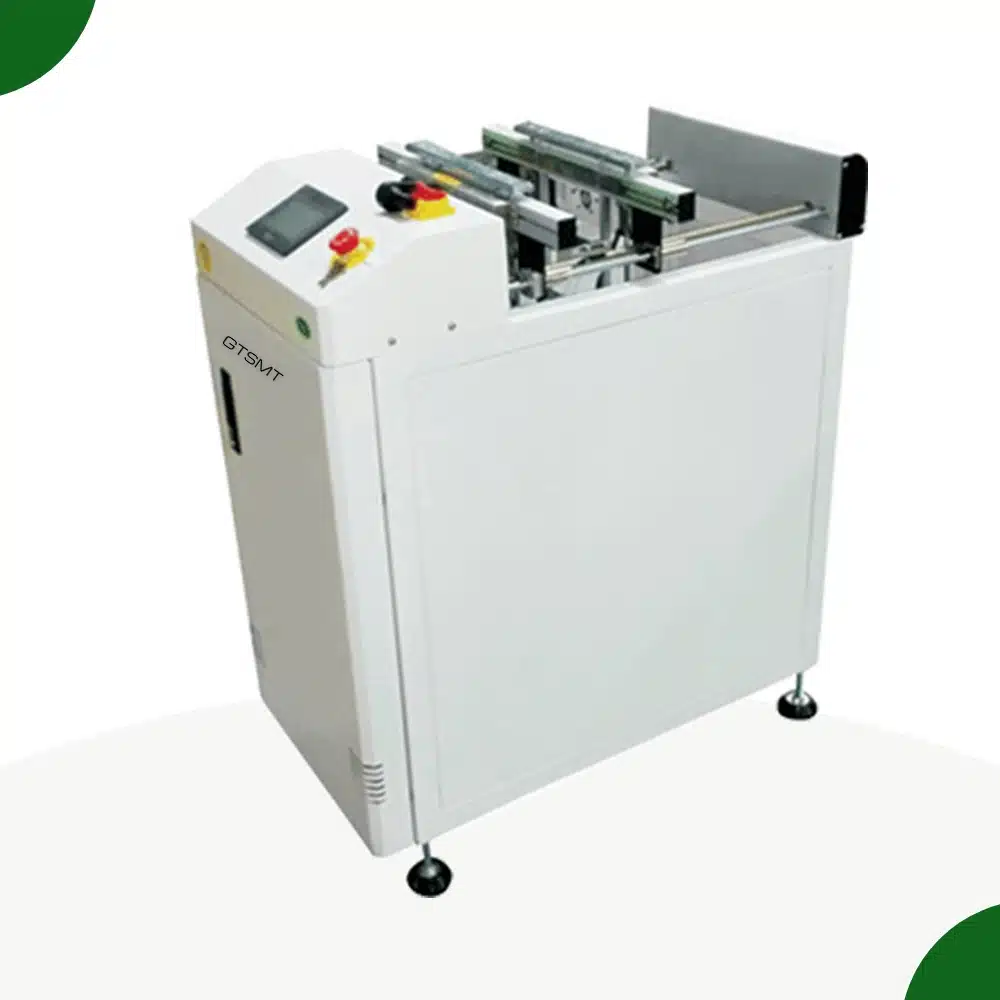

PCB Reject Conveyor is an intelligent board handling unit designed to automatically isolate and remove failed or defective PCBs from the SMT production line. It is typically installed after inspection systems such as AOI (Automated Optical Inspection) or functional test stations. When a PCB is flagged as defective, this conveyor diverts it to a designated reject area, preventing it from continuing down the production line and ensuring only good boards proceed to the next process.

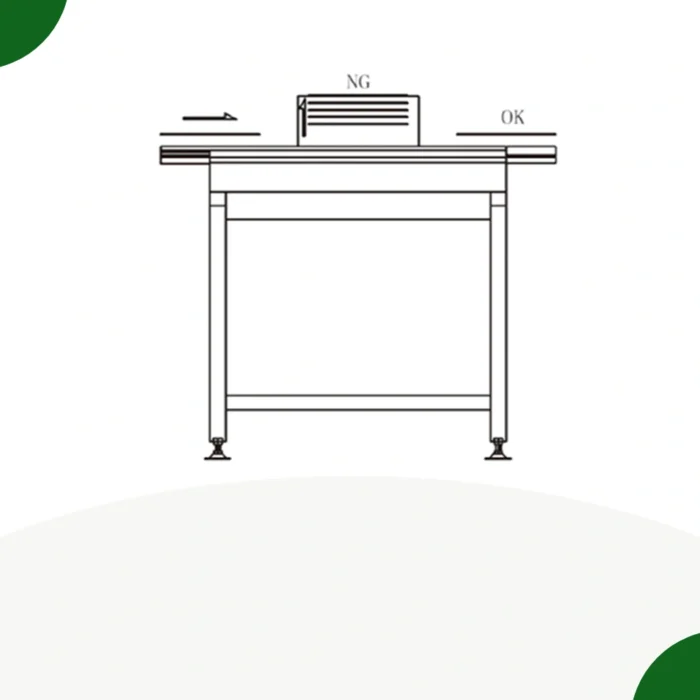

Inline Conveyor for Faulty PCB Isolation
PCB reject conveyor unit helps improve quality control by ensuring quick, traceable separation of NG (No Good) boards. It can be configured with a pass-through lane for good PCBs and a stop-and-hold mechanism for failed boards, depending on the line setup. The reject conveyor is fully SMEMA compatible and integrates seamlessly with inspection or test equipment.
Product technical parameters:
| Description | PCB reject Conveyor is used in front of AOI or after the AOI or SPI in the SMT production line, to store the rejected PCB boards. |
| Belt type | Antistatic oblate belt |
| Conveyor speed | 0.5-20M/min (or customer specified) |
| Power supply | AC 110 volts or 220 volts; single phase |
| Power | Max. 100VA |
| Storage number of PCB | 5pcs (or customer specified) |
| Storage step distance of PCB | 20mm (or customer specified) |
| Transport height | 900 ± 20mm (or customer specified) |
| Transport direction | From left to right or right to left |
Product core parts configuration:
| PLC | Panasonic |
| Driver | Yankong |
| Touch screen | Qinglan |
| Grooved electric eye | Mingzhi |
| Photoelectric switch | Omron |
| Sensor | Omron |
| Relay | Omron |
| Switching-mode power supply | Omron |
Product specification:
| Model | Dimension
(L × W × H, mm) |
PCB board size | Weight
(kg) |
| GT-330 | 500*665*900 | 50*50-445*330 | 50 |
| GT-460 | 500*795*900 | 50*50-460*460 | 70 |
| GT-445 | 1000*665*900 | 50*50-445*330 | 75 |
| GT-530 | 1000*665*900 | 50*50-530*460 | 105 |
Key Applications
Used after AOI, ICT, or functional test stations for automatic NG board rejection
Ideal for SMT lines requiring strict quality control and traceability
Common in high-volume production environments where speed and defect management are critical
Supports integration into smart manufacturing systems with MES connectivity
Usage Benefits of PCB Reject Conveyor
Improves line efficiency by automatically separating faulty boards
Reduces manual handling and the risk of quality issues reaching the final stages
Enhances quality tracking and process reliability
Minimizes disruption to good board flow while isolating defects for review or repair
