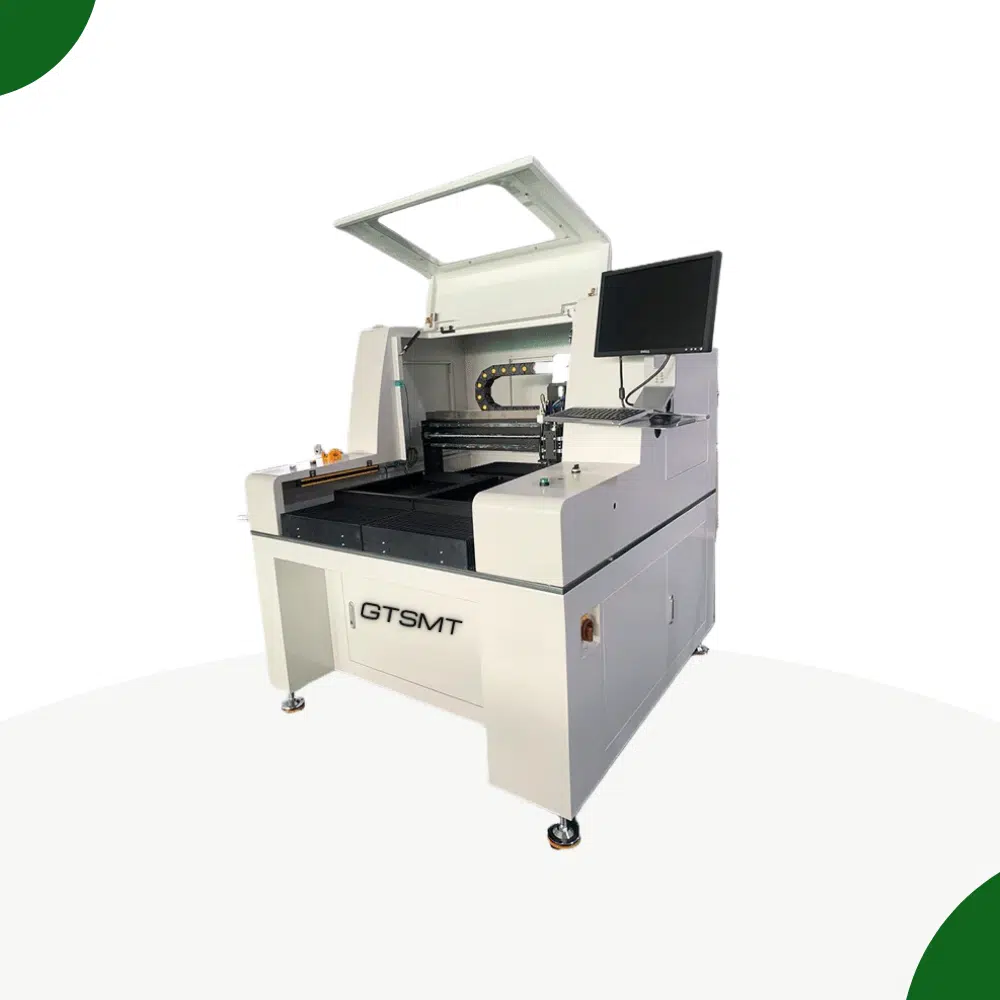

PCB router machine RT-300

A PCB router machine is an advanced piece of equipment used to separate individual PCBs from a larger panel by routing (milling) along predefined paths, typically used when the PCBs are connected by tabs or breakaway sections rather than V-grooves.

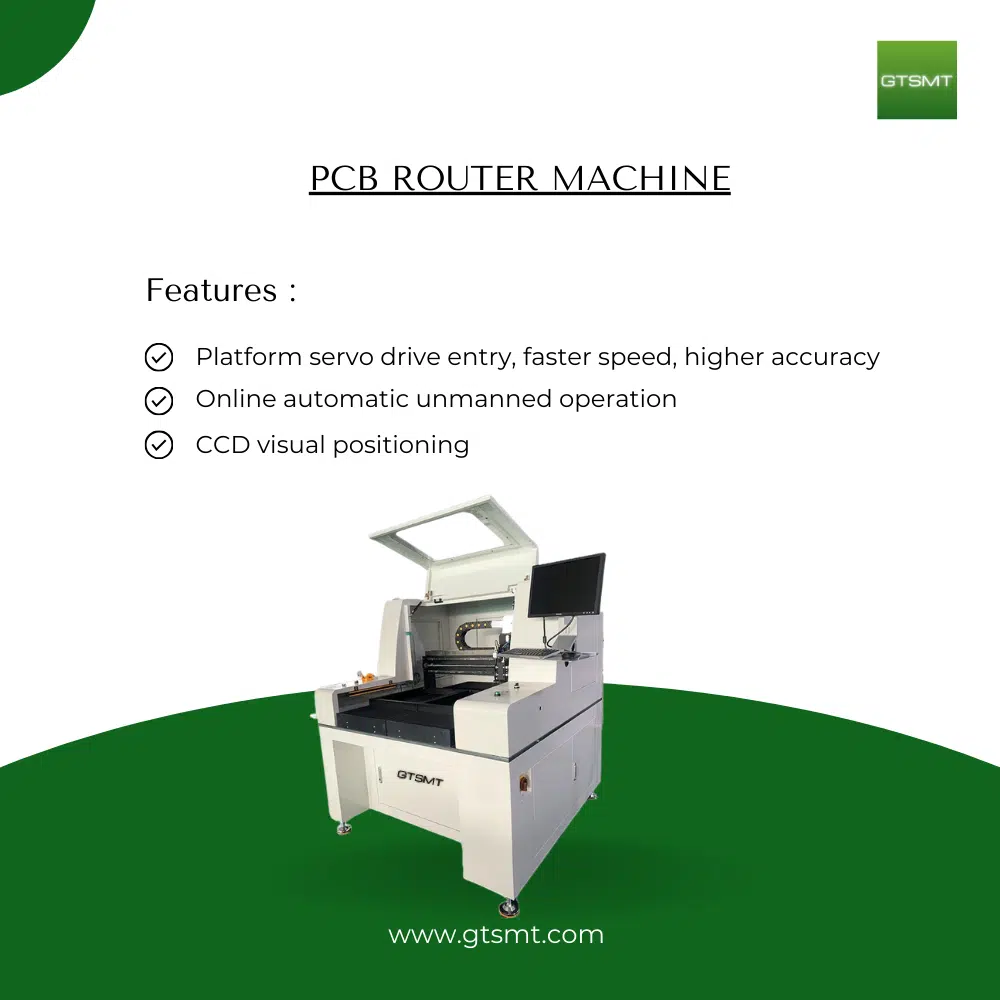

Features:

• Pass CE international certification, ergonomic operation;
• Platform servo drive entry, faster speed, higher accuracy;
• visual intelligent positioning, automatic correction of deviation
• Software is easy to learn, simple training can be proficient
• Broken knife detection, real-time monitoring of cutter anomaly.
• Safety door sensor, open automatic alarm shutdown.
• Germany imported a Kavo spindle, high speed, low noise.
• The machine runs at high speed, stable and stable.
• The loading and unloading device of the PCB interacts with the two platforms.
• Can effectively reduce the idle time of the machine.
• To ideal production efficiency

✅ Key Features of PCB router machine:

• Routing Method: High-speed spindle with precision milling bit (typically carbide)

• Cutting Precision: ±0.05 mm or better

• Control System: CNC (computer numerical control) based with programmable cutting paths

• Panel Size Compatibility: Varies from small to large panel sizes, often customizable

• Dust Collection: Built-in vacuum system for dust and debris removal

• Fixture System: Uses fixtures, jigs, or vacuum platforms to hold panels in place

• Vision System (optional): CCD camera for alignment and mark point recognition

✅ Advantages Over V-Cut Separator:

• A PCB router machine can handle irregular board shapes and layouts

• No stress on components, ideal for high-density PCBs

• Clean edge finish and better dimensional accuracy

• Suitable for aluminum, FR4, and other substrates

✅ Typical Configurations:

1. Single Table PCB Router – Basic entry-level model for low to mid-volume production

2. Dual Table PCB Router – While one table is processing, the other loads/unloads; ideal for continuous production

3. Inline PCB Router – Fully automated integration into SMT lines with robotic loading/unloading

✅ Applications of PCB Router Machine:

• High-end electronics (e.g., smartphones, automotive ECUs)

• LED lighting modules

• Communication and industrial control boards

• PCBs with components close to the edge

✅ Optional Add-ons:

• Barcode/QR code scanners

• Automatic bit changer

• MES/ERP system integration
