-20%

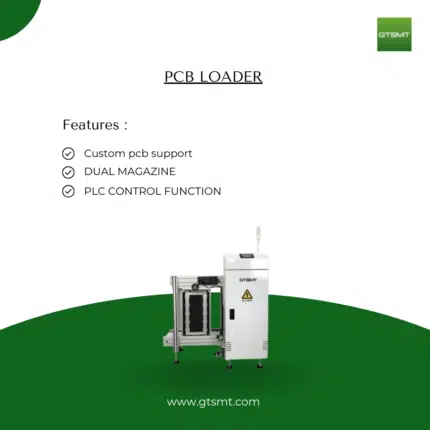

PCB Loader machine GT-400L
Original price was: $2,300.00.$1,800.00Current price is: $1,800.00.

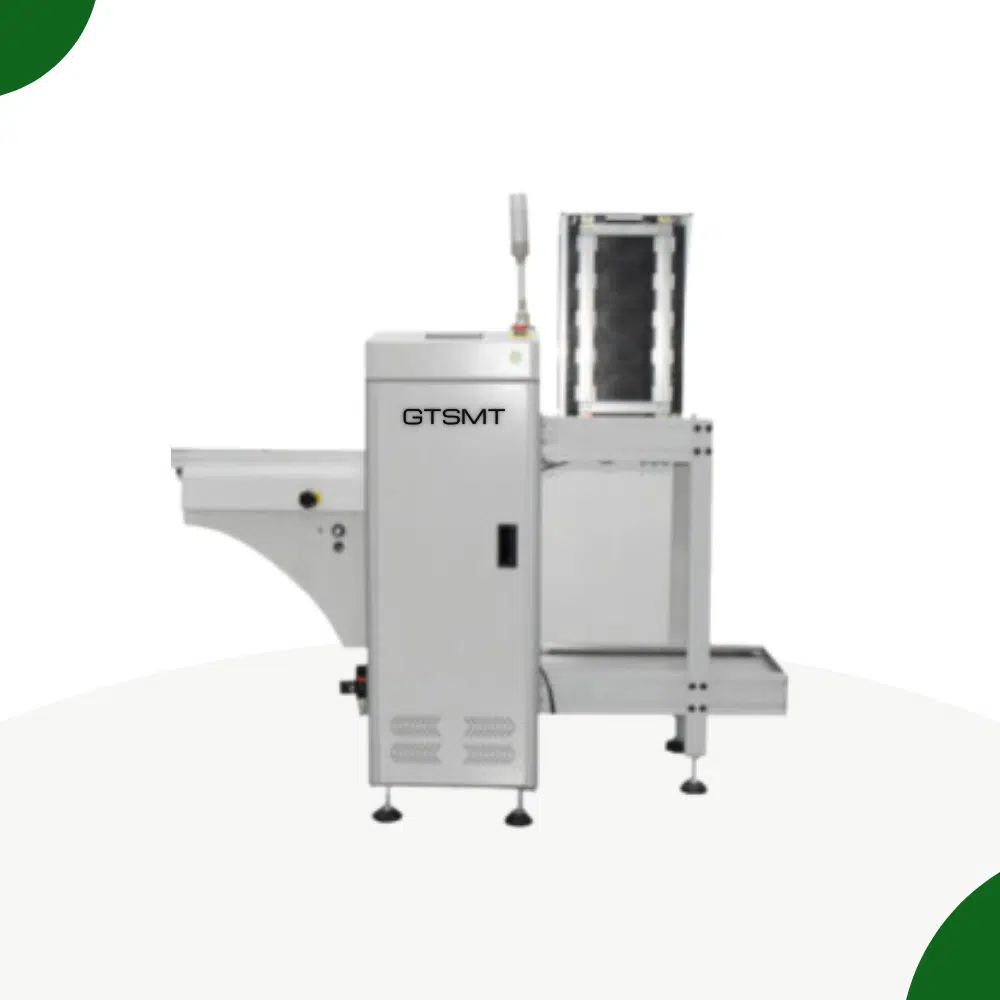

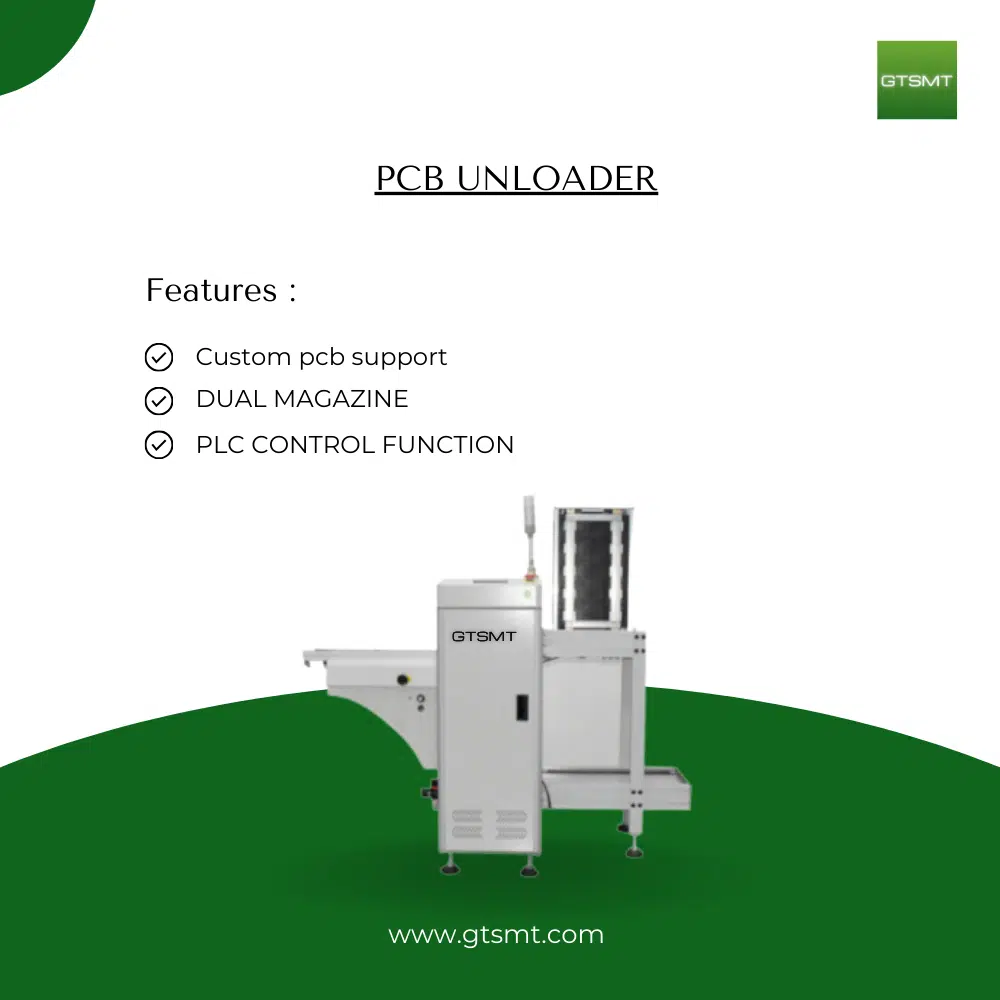

PCB Unloader Machine GT-400UL
Original price was: $2,500.00.$2,000.00Current price is: $2,000.00.
Pcb unloader machine to unload the pcb from the smt line it can store up to 50 pcs in a single magazine. We offer dual magazines with a standard machine the standard size is 300 * 300 mm PCB. We also provide customization support according to PCB size.
- SMEMA Connection
- Aluminum Frame
- 50 pcs PCB board
- Customizable Supports
- Screen Operation
Description
PCB Unloader Machine GT-400UL
| Product | GT-400UL |
| control module | PLC |
| transmission speed | 10 Pcs/Sec |
| Number of boards stored | 50 Pcs |
| Power supply | 220V |
| Circuit board thickness | 0.6mm |
| Effective size of circuit board (length * width) | L300*W250mm (PCB size customization support) |
| Transmission height | 900 ยฑ 20mm |
| Machine dimension | L1150 * Width 800mm * Height 1300mm |
| Conveying direction | Left -> Right , Right -> Left (optional) |
Additional information
| Weight | 500 kg |
|---|---|
| Dimensions | 120 × 100 × 100 cm |
