PCB Vertical Elevator
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)
- User-friendly’ soft touch control panel
- A fully closed design ensures the highest operational protection level
- The top cover can be opened for easy access to the hardware during maintenance
- Parallel and smooth width adjustment (screw)
- Steady and precise scaling (retractable motor)
- Minimize transmission clearance between the conveyor
- Different sizes available upon request
- SMEMA compatible
Categories: PCB Handeling machine, PCB Traffic Control
Description

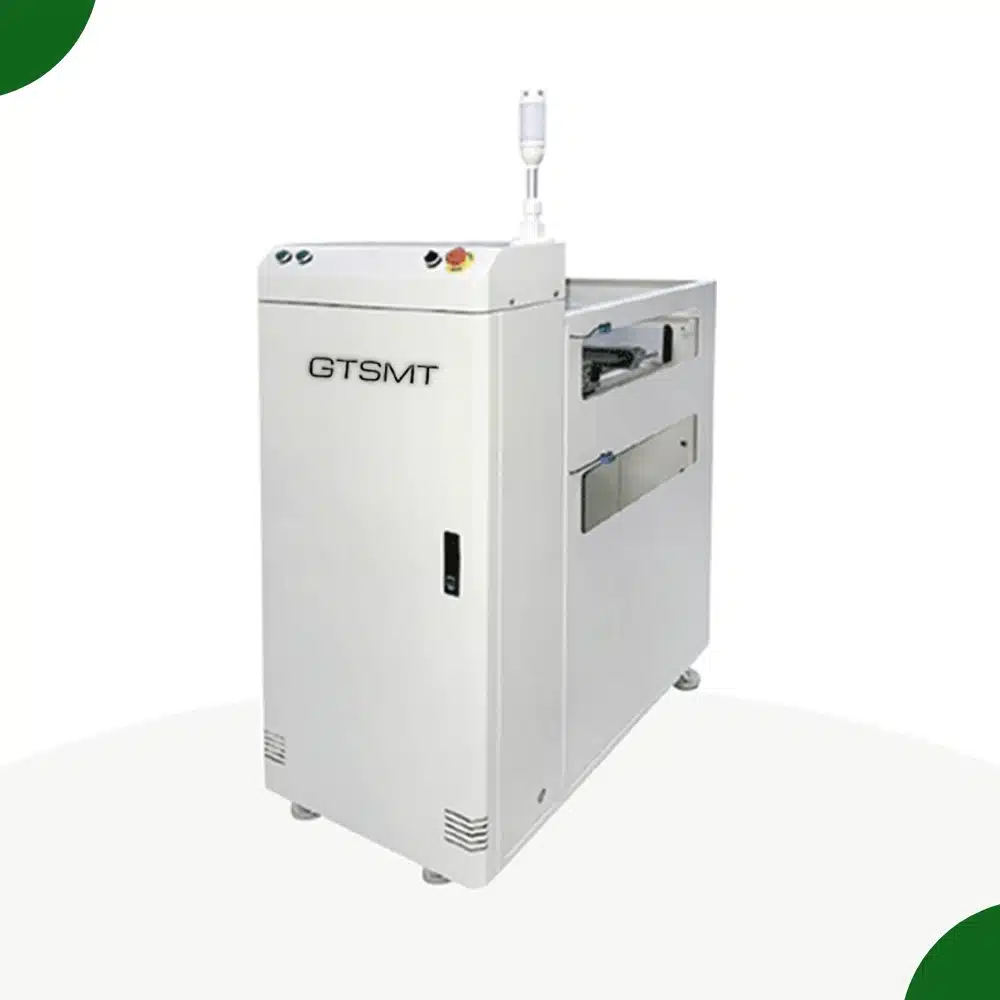

PCB Vertical Elevator

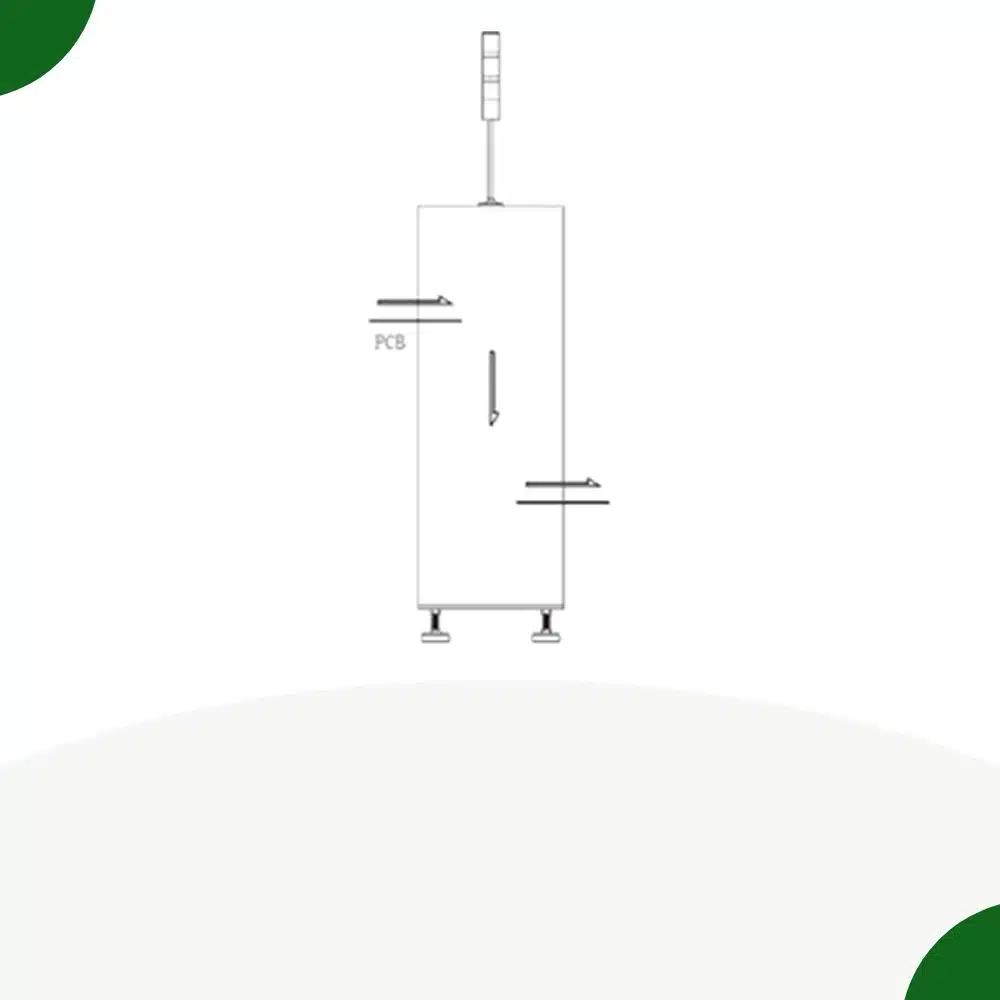

PCB Vertical Elevator is a specialized PCB handling machine designed to transfer printed circuit boards between different vertical levels within an SMT production line. It moves boards up or down using a motorized lift platform, enabling space-saving layouts and facilitating connections between multi-tier machines or floors.
Efficient Multi-Level Board Transfer for SMT Lines
This unit is fully SMEMA-compatible and can be configured with belt conveyor or edge rail systems to suit various board types and sizes. Its programmable logic ensures accurate, synchronized movement and smooth integration with upstream and downstream PCB conveyors or magazine systems.
Specification of PCB Vertical Elevator
Description | PCB Vertical Elevator redirects PCBs flow into different heights |
Cycle time | Depends on the lifting distance |
Belt type | Round belt/oblate belt |
Power supply | AC 110/220 volts; single phase |
Power | Max. 250VA |
Transport direction | L -> R or L <-R |
Dimension
Model | Dimension
(L × W × H, mm) |
Machine height | PCB board size (LxWxH, mm) | Weight
(kg) |
GT-330 | 535*920* H | Depends on the lifting distance | 50*50-460*330 | 140 |
GT-460 | 610*1050* H | 50*50-530*460 | 200 |
Major Configuration
Parts | Foreign Brands |
Motor | VTV |
Bearing | NSK |
Flexible cable | Igus |
Elevating screw | TBI |
Electromagnetic valve | AirTAC |
Pressure regulating valve | |
Magnet switch | SMC |
Air cylinder | |
Servo motor | Panasonic |
Servo driver | |
PLC | |
Limit switch | Omron |
Approach switch | |
Inductive switch | |
Photoelectric switch | |
Sensor | |
Driver | |
Relay | |
Grooved electric eye | |
Switching-mode power supply |
Key Applications
Used to transport PCBs between floors or levels in multi-tier SMT lines
Ideal for factories with vertical space constraints or mezzanine-level production areas
Can link upper and lower-level machines, such as loaders, reflow ovens, or inspection equipment
Often used in combination with buffer systems, stackers, or NG/OK unloaders
Usage Benefits
Maximizes floor space by utilizing vertical movement
Improves production flexibility with multi-level line design
Reduces manual handling and operator fatigue
Ensures safe and precise vertical board transfer with smart control features
