Solder Paste Printer P5
$35,000.00 Original price was: $35,000.00.$28,000.00Current price is: $28,000.00.
Stacker and magazine combination loader
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)
- Compatible with both functions ofthe stacker and the magazine loader
- Increase the board without interference
- User soft touch control panel
- By-pass mode provided
- The integral casting lifting platform structure design has improved the stability of the equipment
- Multifunctional electronic circuit and program design, stable performance, ensure smooth production line
- The LED tricolor working indicator is controlled by 7 inch color human-machine interface
- Top and bottom pneumatic clamps can ensure the positioning accuracy ofthe magazine
- The upper part of the bin has 4 kinds of PITCH selections, which can set the step distance of the feeding PCB board
- The material box is transmitted by the plastic strip of the flat plate
- Adjustable push plate speed control
- Three-point positioning, upper and lower pneumatic clamping, ensure the positioning accuracy of the material box
- The push plate protection system ensures that the PCB board will not be damaged and the process loss will be reduced
- The special pneumatic structure design ensures zero PCB breakage
- SMEMA compatible
Categories: PCB Handeling machine, PCB Loader and Unloader
Description

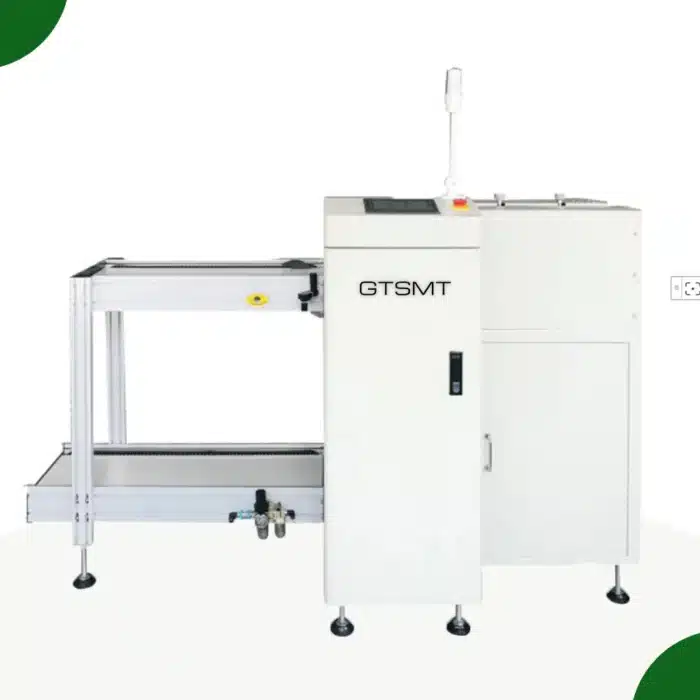

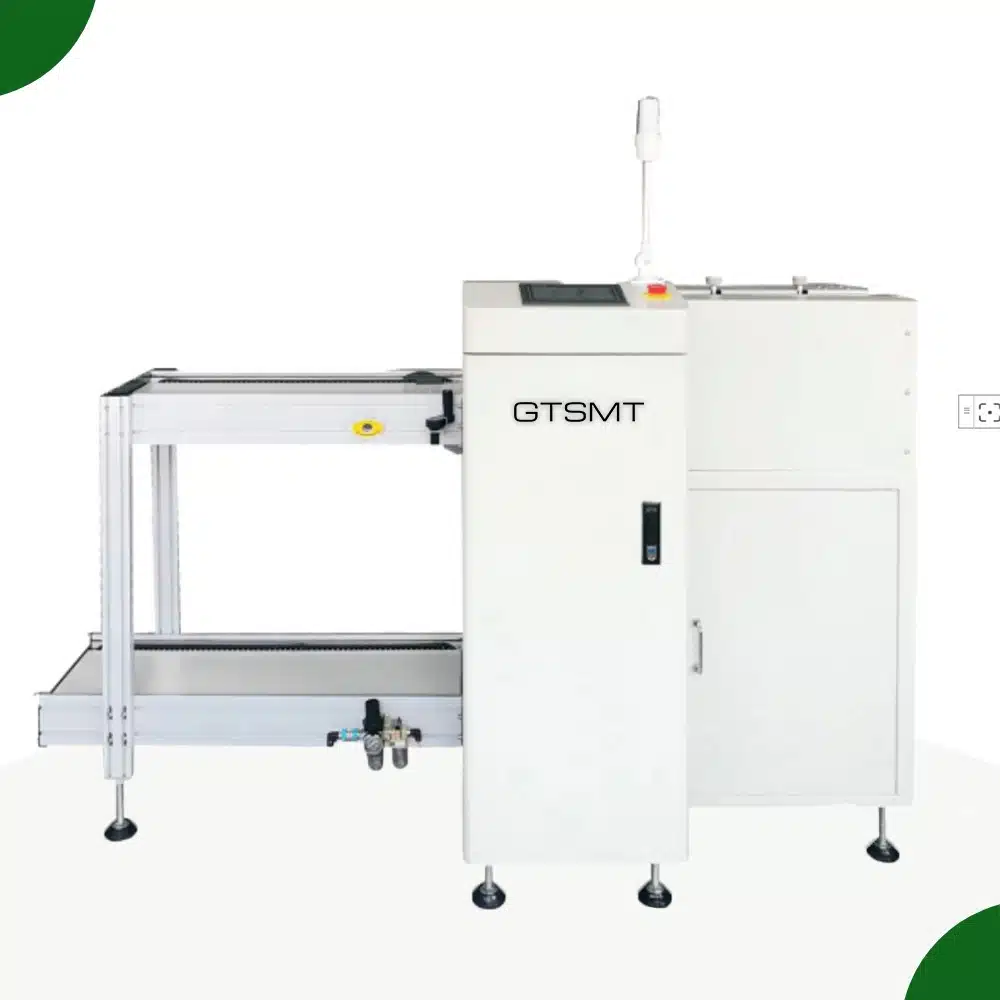

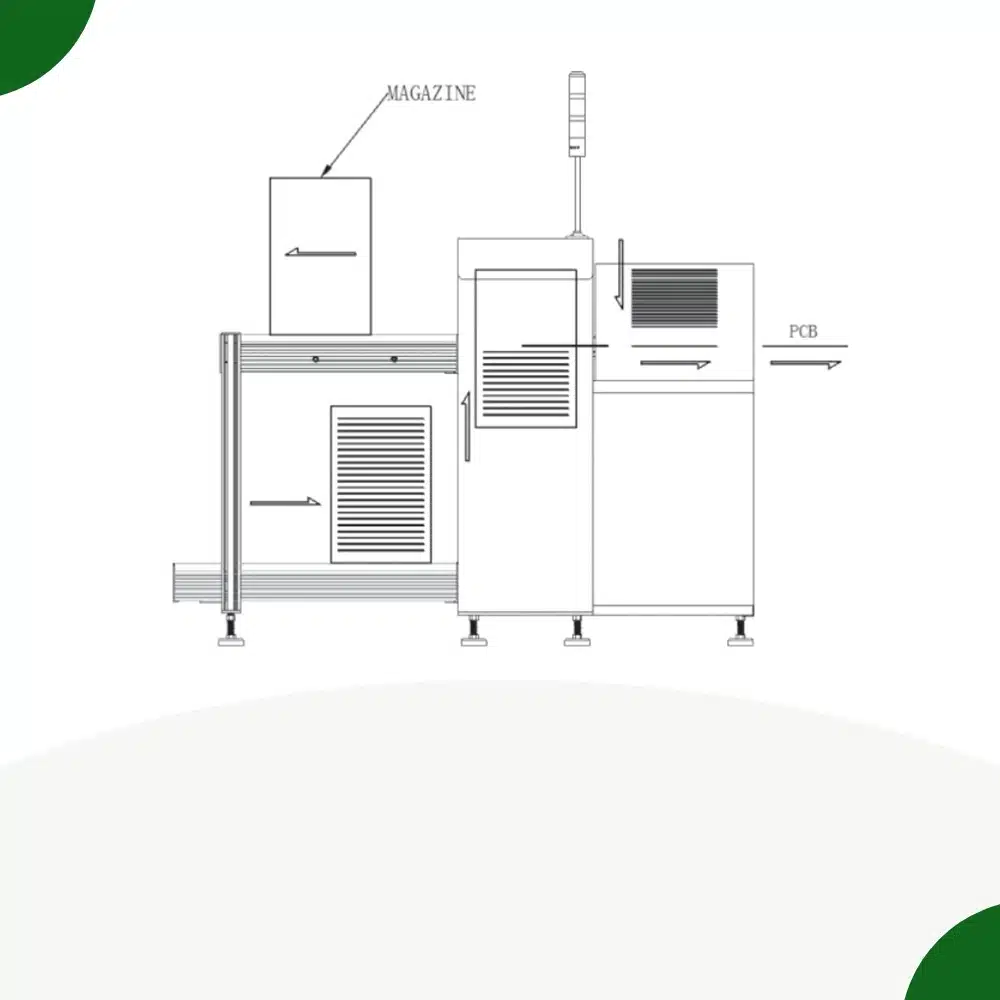

Stacker and Magazine Combination Loader
PCB Stacker and Magazine Combination Loader is an advanced PCB loading system designed to support both bare board stacking and magazine-style loading in a single machine. This hybrid solution offers maximum flexibility for pcb assembly lines that handle a mix of board types or require frequent switching between loading methods. It enables operators to load PCBs either by directly stacking them on a platform or by using magazines with slotted racks for automatic feeding.
Dual-Mode PCB Loading for Flexible SMT Operations
This dual-mode loader is ideal for medium to high-volume assembly environments where space, efficiency, and versatility are critical. The system is built with robust, adjustable mechanisms to ensure smooth, accurate loading and is fully compatible with standard SMEMA interfaces for seamless integration with downstream equipment such as conveyors, printers, or placement machines.
Specifications:
Description | A stacker and magazine combination loader is used for loading and unloading printed circuit boards (PCBs) in the surface-mount technology (SMT) line—a combination of a stacker and a magazine loader, compatible with both bare board and double-size PCBs. |
Number of magazines | Upper conveyor: 1 magazine;
lower conveyor: 2 magazine |
Cycle time | Approx. 12 seconds (or customer specified) |
Max. PCB storage capacity | 400pcs (0.6mm thickness board) |
Indexing pitch | 10, 20, 30, 40mm (or customer specified) |
Power supply | AC 110 volts or 220 volts; single phase |
Power | Max. 300VA |
Air pressure and consumption | 4-6 bar; max. 30ltr/min |
Transport height | 900 ± 20mm (or customer specified) |
Transport direction | From left to right or right to left |
Key Applications of PCB stacker and magazine combination loader
Pcb stacker machine at the start of SMT lines to load PCBs from stacks or magazines
Ideal for production lines handling multiple board formats or job changes
Supports both bare board input and slotted magazine feeding in mixed assembly environments
Applicable in both prototyping and high-volume runs requiring frequent setup changes
Usage Benefits
Combines two board feeding methods in one unit to save space and smt equipment cost
Reduces downtime by allowing fast switching between stacker and magazine modes
Increases operational flexibility for lines with varied board types or production needs
Improves line automation and efficiency by reducing manual handling during board loading
