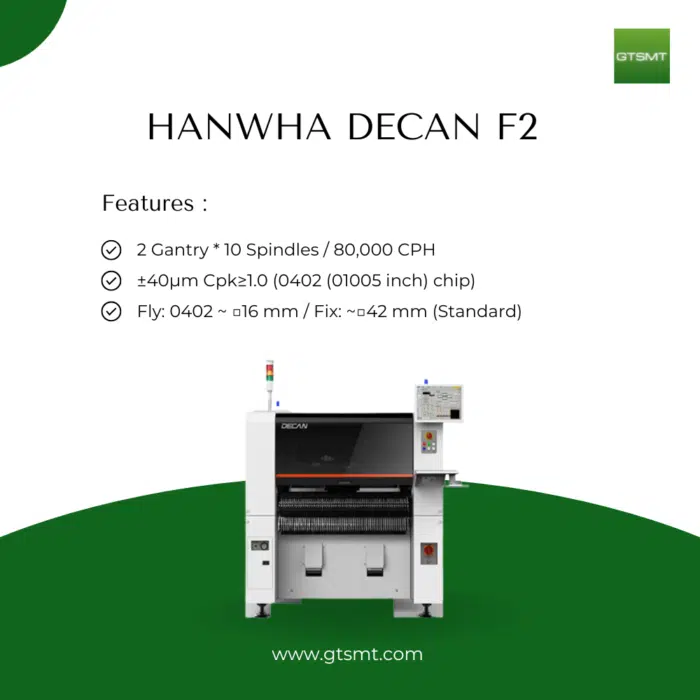

Hanwha decan f2 Pick and Place Machine

Key Features

1. Ultra-High-Speed Placement:

• Capable of placing up to 80,000 components per hour (CPH) under optimal conditions.
• It is one of the fastest pick-and-place machines in its class and is ideal for high-volume manufacturing.

2. Dual Gantry System with 20 spindles:

• Hanwha decan f2 features dual gantries with 12 nozzles per gantry, allowing for simultaneous, parallel placement of components.
• This configuration maximizes throughput and reduces cycle time.

3. Wide Component Range:

• Hanwha decan f2 Handles components as small as 01005 (0.15mm x 0.075mm) to larger parts up to 10mm in height and 50mm x 50mm in size.
• Capable of placing various components, including small resistors, capacitors, ICs, and connectors.

4. Advanced Vision System:

• Equipped with an intelligent vision system for high-speed, high-accuracy component placement.
• Vision capabilities include 3D inspection for precise alignment, ensuring quality, and reducing defects.

5. Flexible Feeder Capacity:

• Supports a variety of feeder types, including tape, stick, and tray feeders.
• Quick-change feeder options enable faster production changeovers, reducing downtime and increasing flexibility in production.

6. Large PCB Support:

• Accommodates PCBs up to 850mm x 510mm, providing flexibility for a wide range of PCB sizes, including large and complex designs.
• Supports both rigid and flexible PCBs, making it suitable for diverse applications.

7. User-Friendly Interface and Software:

• Features an intuitive, easy-to-use software interface for programming, monitoring, and real-time diagnostics.
• The software is designed for seamless integration with production management systems, enabling traceability and optimizing production processes.

8. Energy Efficiency and Smart Manufacturing:

• Incorporates energy-saving features and low power consumption to reduce operational costs.
• Fully integrated with Industry 4.0 technologies, including real-time data collection, machine-to-machine communication, and analytics for continuous process improvement.

9. Reliable and Robust Design:

• Built for 24/7 operation in high-demand environments, ensuring consistent performance and durability.
• Designed with minimal maintenance requirements, increasing uptime and reducing overall maintenance costs.

Applications of Hanwha pick and place machine decan f2

The Decan F2 is perfect for industries that require high-speed, high-precision assembly, including:

• Automotive electronics: for components like sensors, ECUs, and more.
• Consumer electronics: for smartphones, wearables, and home appliances.
• Telecommunications: for network infrastructure equipment and mobile devices.
• Medical devices: for precise and complex assemblies.
• LED display technology: for large and small displays, signage, and lighting systems.

The Hanwha Decan F2 is an outstanding pick-and-place solution for manufacturers seeking speed, flexibility, and precision in their SMT assembly processes. Its cutting-edge technology, speed, and adaptability make it an excellent choice for high-volume production lines requiring the highest level of performance.
