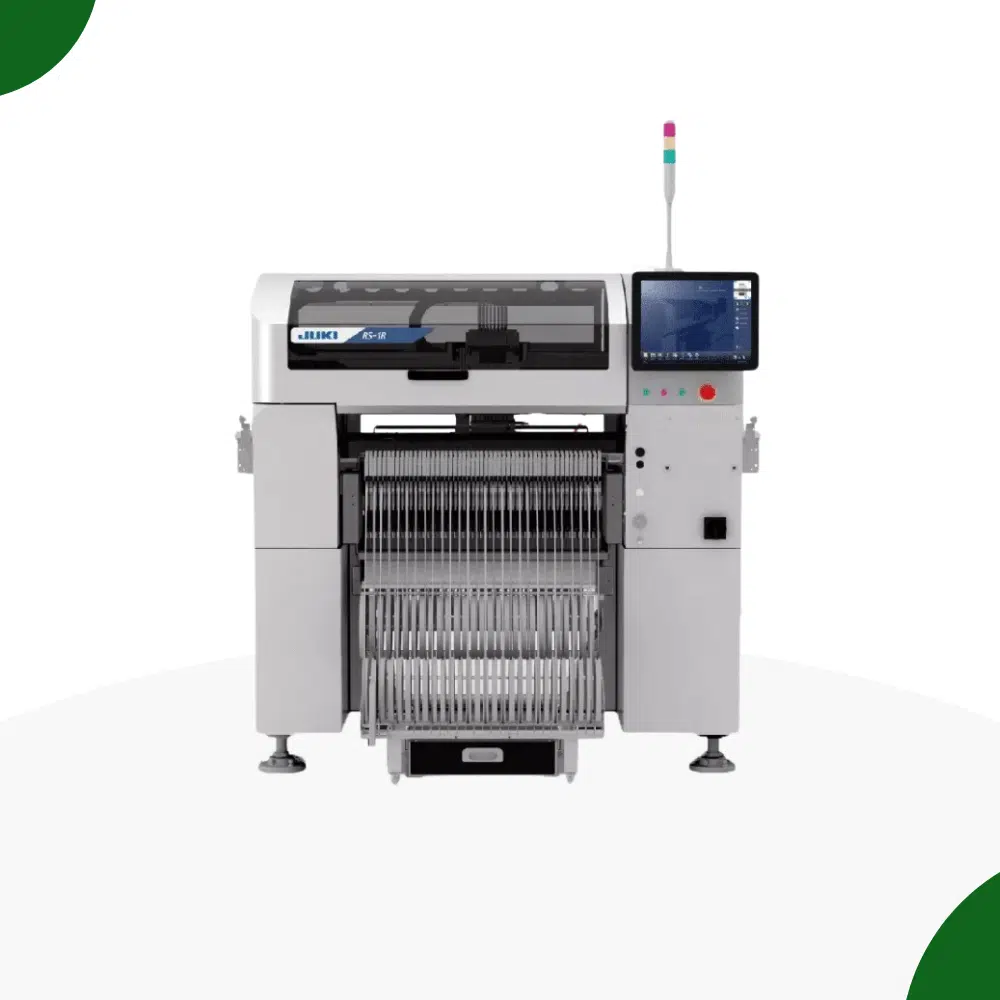

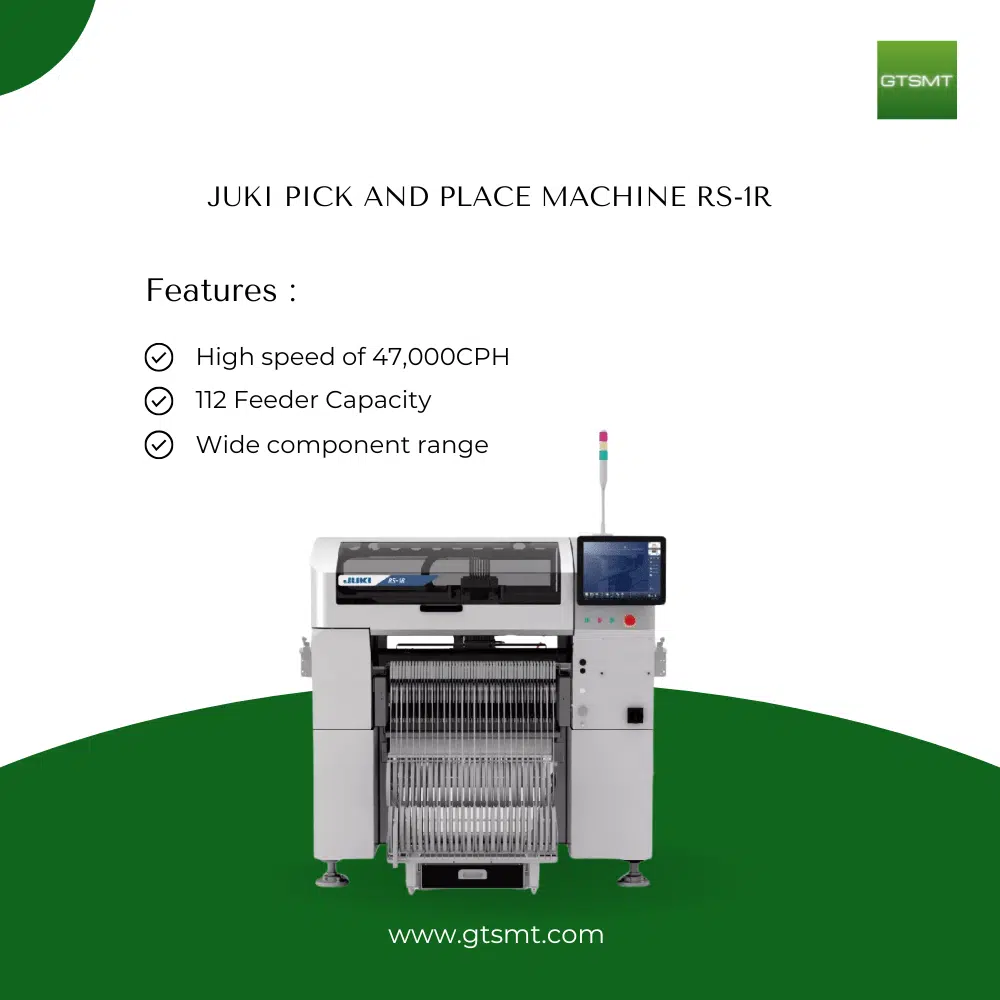

JUKI RS-1R pick and place machine
Original price was: $62,000.00.$55,000.00Current price is: $55,000.00.
JUKI RS-1R is a multifunction Pick and Place Machine Even faster assembly of the smallest chips (0201 metric) up to large components of 50 x 150 mm or 74 mm edge length for square components.
Description
JUKI RS-1r pick and place machineÂ
The consistent further development of the tried-and-tested technologies from the Juki smt high-speed machine opens up new, outstanding possibilities:
Even faster assembly of smallest chips (0201 metrics) up to large components of 50 x 150 mm or 74 mm edge length for square components. The base frame of the RS-1R has been completely redesigned for this purpose. The unique Takumi head covers even more different component heights and thus achieves a decisive speed advantage. The 360 ° visual component recognition allows the secure detection of user-specific polarity marks. Thanks to the RFID integration in the nozzles, these can be traced back completely together with the components and boards. The machine combines the features of a chip shooter with a mounter for large components. The purchase of each special machine type it eliminates a change of the placement head
New RF Style Feeder Design
The new RF-style feeders are 17% smaller and 50% lighter.
Supports a Wide Component Range
Build any board from 0402 metrics (01005) up to 74mm square and 50mmx150mm rectangular parts for max flexibility.
Highly Adaptable Design
Dynamically optimizes line balance for the highest throughput
New Head Design
The new head design automatically adjusts the centering height based on the components placed.
Advanced Laser Centering Technology
JUKI’s Advanced Laser Centering Technology is fast, accurate, and reliable for a wide range of parts.
