Hanwha  SM 482 Plus is a versatile and high-precision pick-and-place machine designed for flexible, mid-to-high volume Surface Mount Technology (SMT) production. It offers advanced features to meet the demands of modern PCB assembly with a focus on accuracy, adaptability, and efficiency.

Key Features of the Hanwha SM482 Plus

1. Optimal Placement Speed

• Achieves a placement speed of up to 28,000 components per hour (CPH) under ideal conditions.
• Perfect for manufacturers balancing speed with flexibility and precision.

2. Wide Component Handling

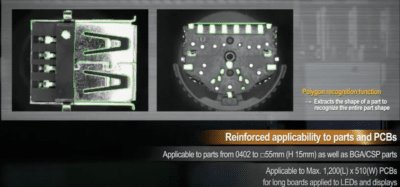

• Handles components ranging from 0201 metric (0.25mm x 0.125mm) to larger parts up to 75mm x 75mm or 15mm in height.
• Ideal for a variety of component types, including small resistors, capacitors, ICs, and odd-shaped components.

3. Single Gantry with Six Nozzles

• Equipped with a single gantry and six independent placement heads, enabling efficient and precise component placement.
• Supports mixed production with varying component types and sizes.

4. Vision System

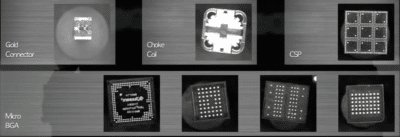

• High-precision vision inspection ensures accurate component recognition, alignment, and placement.
• Compatible with 3D inspection for added quality assurance.

5. Flexible Feeder System

• Supports multiple feeder configurations, including tape, stick, and tray feeders.
• Feeder slots can be adjusted for various production needs, reducing setup time and downtime during changeovers.

6. Advanced Software Integration

• User-friendly interface for easy programming and real-time monitoring.
• Integrated with production management systems to enhance traceability and optimize workflow.

7. Compact and Space-Efficient Design

• Space-saving footprint allows for efficient use of production floor space.
• Lightweight design for easy integration into existing assembly lines.

8. High Reliability and Low Maintenance

• Designed for consistent performance in 24/7 manufacturing environments.
• Reduced wear and tear due to advanced mechanical design, minimizing downtime and maintenance costs.

9. Support for Diverse PCB Sizes

• Handles PCB sizes up to 510mm x 460mm with optional support for larger boards.
• Compatible with rigid, flexible, and multi-layer boards.

Applications

The SM482 Plus is ideal for diverse manufacturing requirements, including:

• Consumer electronics
• Automotive electronics
• Industrial equipment
• LED modules and displays
• Medical devices

The Hanwha SM482 Plus combines speed, flexibility, and precision to deliver reliable performance for a wide range of production scenarios. It is the perfect solution for manufacturers requiring adaptable and efficient pick-and-place systems.
