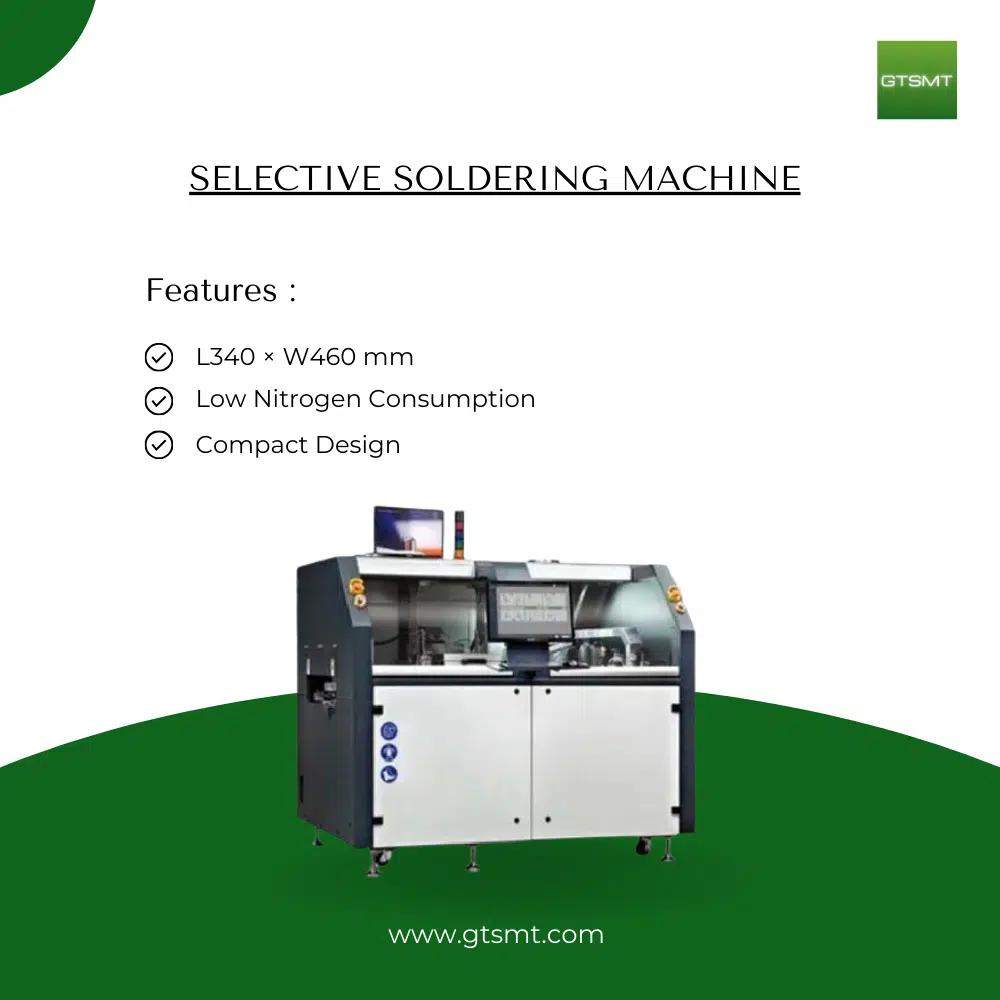

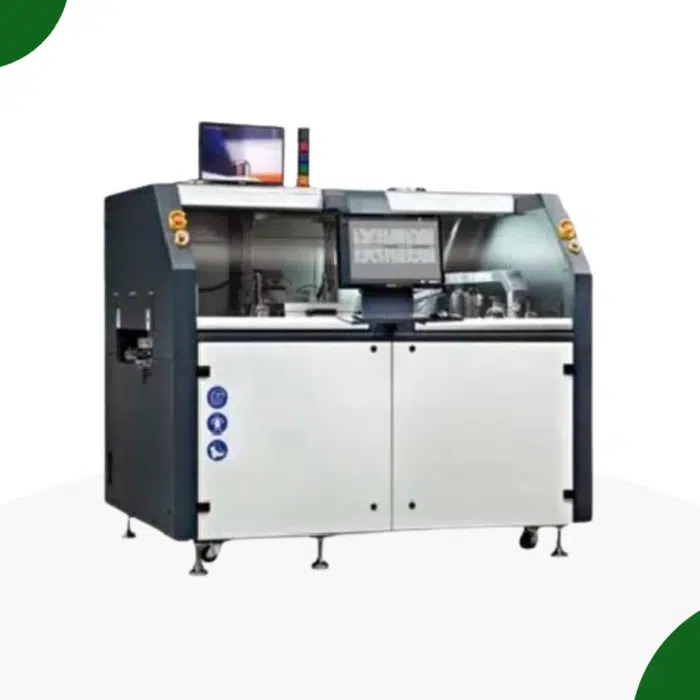

The Selective Soldering Machine is an advanced and versatile solution designed to meet the high-precision soldering needs of modern electronics manufacturing. It is ideal for applications requiring selective soldering of through-hole components on printed circuit boards (PCBs) without compromising nearby components or assemblies.
Compact and Durable Design:
The machine is built with a robust frame and efficient layout, ensuring durability and ease of use while optimizing floor space.
Precision Solder Pot with Electromagnetic Pump:
Equipped with an advanced electromagnetic pump system, the solder pot delivers accurate and controlled solder flow for precise soldering, reducing defects and rework.
Adjustable Transport Width:
The transport system allows for width adjustments to accommodate various PCB sizes, offering flexibility for multiple production needs.
High Accuracy and Repeatability:
The machine delivers consistent solder joints with high positional accuracy, ensuring reliable performance across multiple soldering points.
Low Nitrogen Consumption:
The system is engineered to minimize nitrogen usage, resulting in cost-effective operation while maintaining a clean soldering environment.
Single Track and Dual Pot Options:
The soldering system provides flexibility with single track single pot or dual pot configurations to adapt to production scale and requirements.
Modular Design:
Supports one, two, or three module setups, enabling efficient scalability and the ability to handle varying production volumes.
Technical Specifications:
Dimensions: Varies by model (e.g., 4200×1915×1571 mm).
PCB Size: Supports PCBs up to 510×510 mm.
Conveyor Height: 900 ± 20 mm for smooth PCB handling.
Transport Width Adjustment: Up to 510 mm for flexible board configurations.
Solder Pot: Advanced solder pot system with precise electromagnetic pumping technology.
Tin Dross Control: Efficient operation ensures minimal tin waste, saving material costs.
Nitrogen Consumption: Optimized at 1.5-2 m³/h for reduced operational costs.
Applications:
Through-hole components for complex assemblies
Automotive electronics
Communication devices
Consumer electronics
Industrial control systems
Why Choose Our Selective Soldering Machine?
High precision and reliability for critical solder joints
Flexibility to handle various board sizes and production needs
Cost-saving features such as low nitrogen consumption and reduced tin dross
Scalability with modular designs to match growing production requirements
