Wave Soldering Machine WS350
Wave Soldering Machine WS350 boosts efficiency with precision soldering,
reduces waste, and ensures consistent high-quality joins, perfect for electronics manufacturing.
- Buffer system
- Flux supply system
- Exhaust fan
- Flux spray system
- LCD
- Pre-heater
- Solder pot lifting unit
- Dual wave solder pot
- Cooling system
- Angle adjustment controller
- Finger cleaning system
- Conveyor system
Description

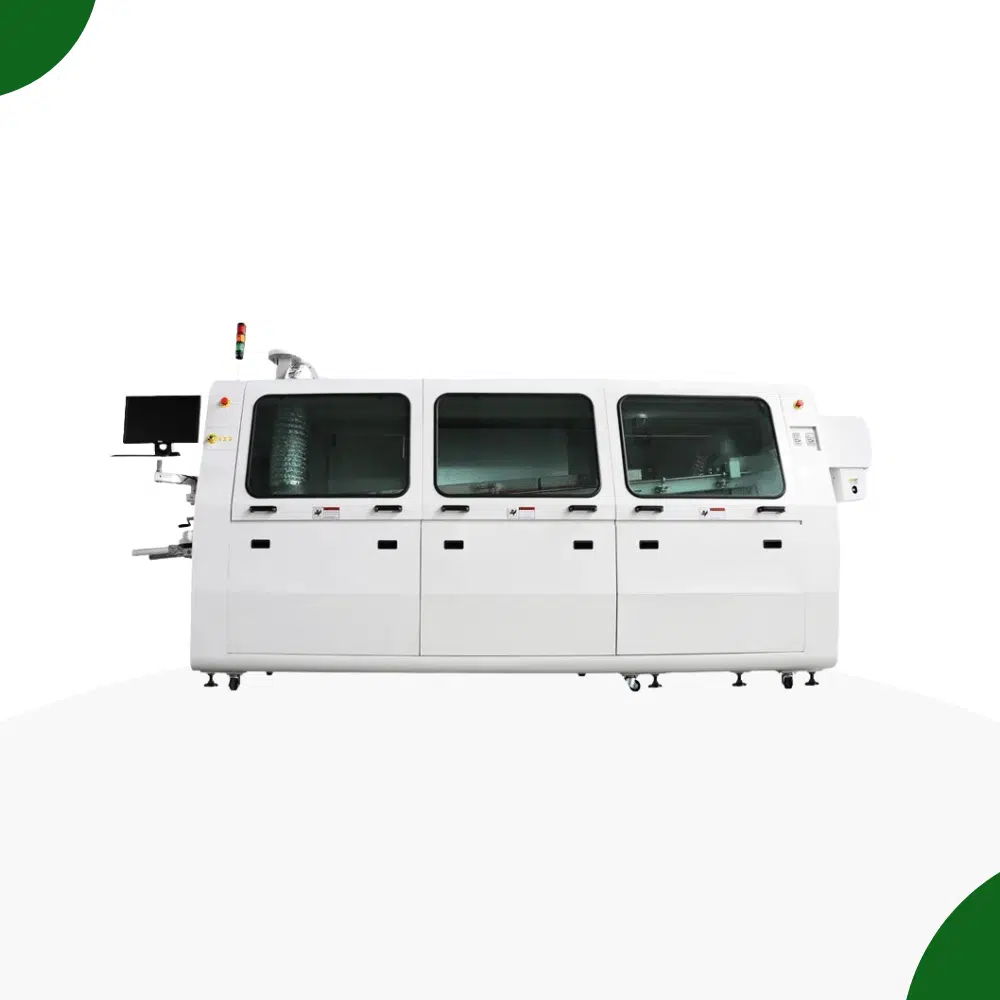

Wave Soldering Machine WS-350
The Wave Soldering Machine is a powerful PCB soldering system designed for high-speed and reliable soldering of through-hole components. Widely used in THT (Through-Hole Technology) processes, this machine delivers molten solder via a controlled wave, ensuring consistent and durable solder joints across all component leads and pads.
Efficient Through-Hole Soldering for High-Volume PCB Assembly
Featuring precise preheating zones, fluxing systems, and stable solder waves, modern wave soldering equipment supports both lead-free and leaded soldering, making it suitable for a wide range of electronics manufacturing applications including power supplies, industrial control boards, and consumer electronics.
| Model | Wave soldering machine WS-350 |
| Dimension: L*W*H(mm) | 4350*1422*1750 |
| Weight | Approx.1600kg |
| Power Supply | 3PH 380V 50HZ |
| Start up Power | 33KW |
| Normal Running Power | 8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spraying Pressure | 0.2Mpa~0.4Mpa |
| Flux Flow Control | option |
| Auto Flux Filling | Standard |
| Exhausting | Top exhaust |
| Exhausting Pipe Diameter(mm） | Φ250 |
| Exhaust fan power | 750W |
| Preheating Mode | Convection/IR emitter |
| Temperature Control Mode | PID |
| Preheating Zone Quantity | 3 |
| Preheating Zone Length(mm) | 1800 |
| Preheating Temperature Range | Room temperature~200℃ |
| Warm-up Time(min) | Approx.12min(setting：150℃) |
| Width(mm） | 50~350 |
| Conveying Direction | L→R（Option：R→L） |
| Conveying Speed(mm/min) | 500~1800 |
| Conveying Height(mm) | 750±20 |
| Available Component Height(mm) | Top 120 Bottom 15 |
| Conveying Speed Control Mode | Closed loop step-less speed regulation by inverter |
| Finger | Spring Pressing Finger；D-40 Type Finger；
Double-hook Finger； Heavy type double hook finger(Options) |
| Conveying Angle | 4~7° |
| Solder Pot Type | Mechanical |
| Solder Pot Material | (Casting Iron) |
| Wave Height Adjustment | （PC digital control） |
| Cooling type | （Air Cooling） Option:（Water cooling） |
| Solder Pot Heating Power | 13.5KW |
| Max Solder Pot Temperature | 300℃ |
| Solder Pot Capacity | Approx.480KG |
| Wave Driving Power | 180W* 2 3PH 220 VAC |
| Solder Pot Warm-up Time | Approx.150min(setting：250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | (Brush) |
Key Applications of Wave Soldering Machine:
• Ideal for THT assembly and mixed-technology PCB production
• Commonly used in automotive, industrial, home appliance, and telecom products
• Supports inline SMT lines requiring robust through-hole component soldering
• Compatible with PCB conveyors, loaders, and unloaders for full automation
Usage Benefits of the Wave Soldering Machine
• Ensures high-quality, uniform solder joints for all through-hole components
• Reduces manual soldering time and operator fatigue
• Enhances production efficiency with automated fluxing and temperature control
• Suitable for both small and high-volume batch production
